Epson N6 Series User Manual

Setup & Operation 6. Options
N6 Rev.2 83

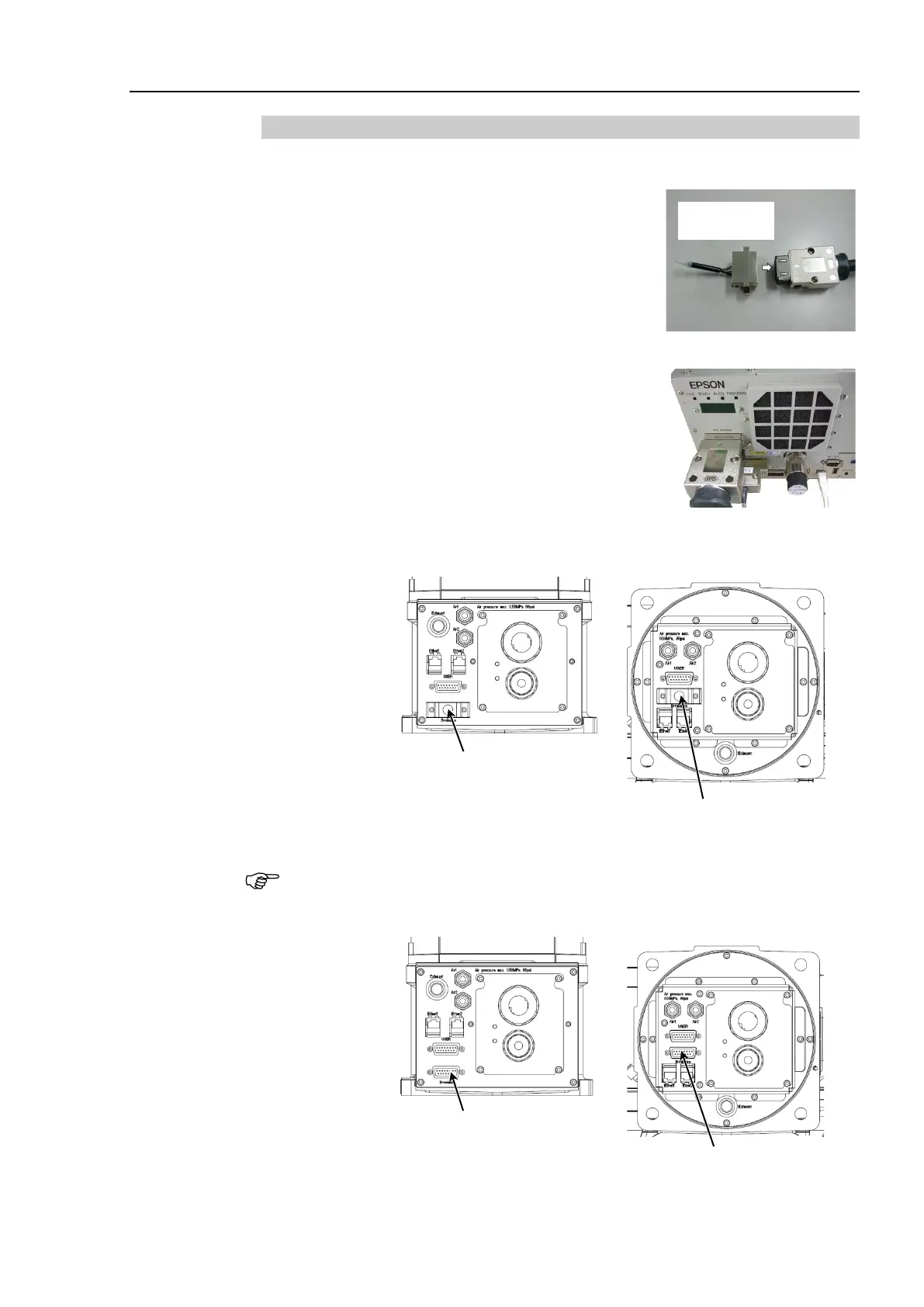

Mount the brake release unit
(1)
Turn
OFF the controller.
(2)
When
the M/C power cable is not connected to
the Controller:
Connect either the M/C short connector or
the Controller.
(Keep the Controller power OFF)
The M/C short connector can be purchased
singly.
M/C short
connecter
When
the M/C power cable is already
connected to the C
ontroller:
Go to the step (3).
(3)
Disconnect the external short connector.
M/C cable direction
: Standard (backward)
Upward and
downward
External short connector
External short connector
(
4)
Connect the brake release unit to the connector of the connection cable.
The connection cable connector and the adjacent user cable
connector have the same
shape.
Be careful not to connect the wrong connector.
M/C cable direction
: Standard (backward)
Upward and downward
Connector of
connection cable
Connector of
connection

NOTE
