Setup & Operation 6. Options
84 N6 Rev.2
Remove the brake release unit
(1)
Turn OFF the brake release unit.
(2)
Disconnect
the power cable of the brake release unit.
(3)
Disconnect the brake release unit from the connector of the connection cable.
(4)
If the M/C short connector is connected to the M/C power cable in the Installation
step (2),
disconnect the M/C short conenctor.
(5)
Connect the external short connector to the connector of the connection cable
The connection cable connector and the adjacent user cable
connector have the same
shape.
Be careful not to connect the wrong connector.

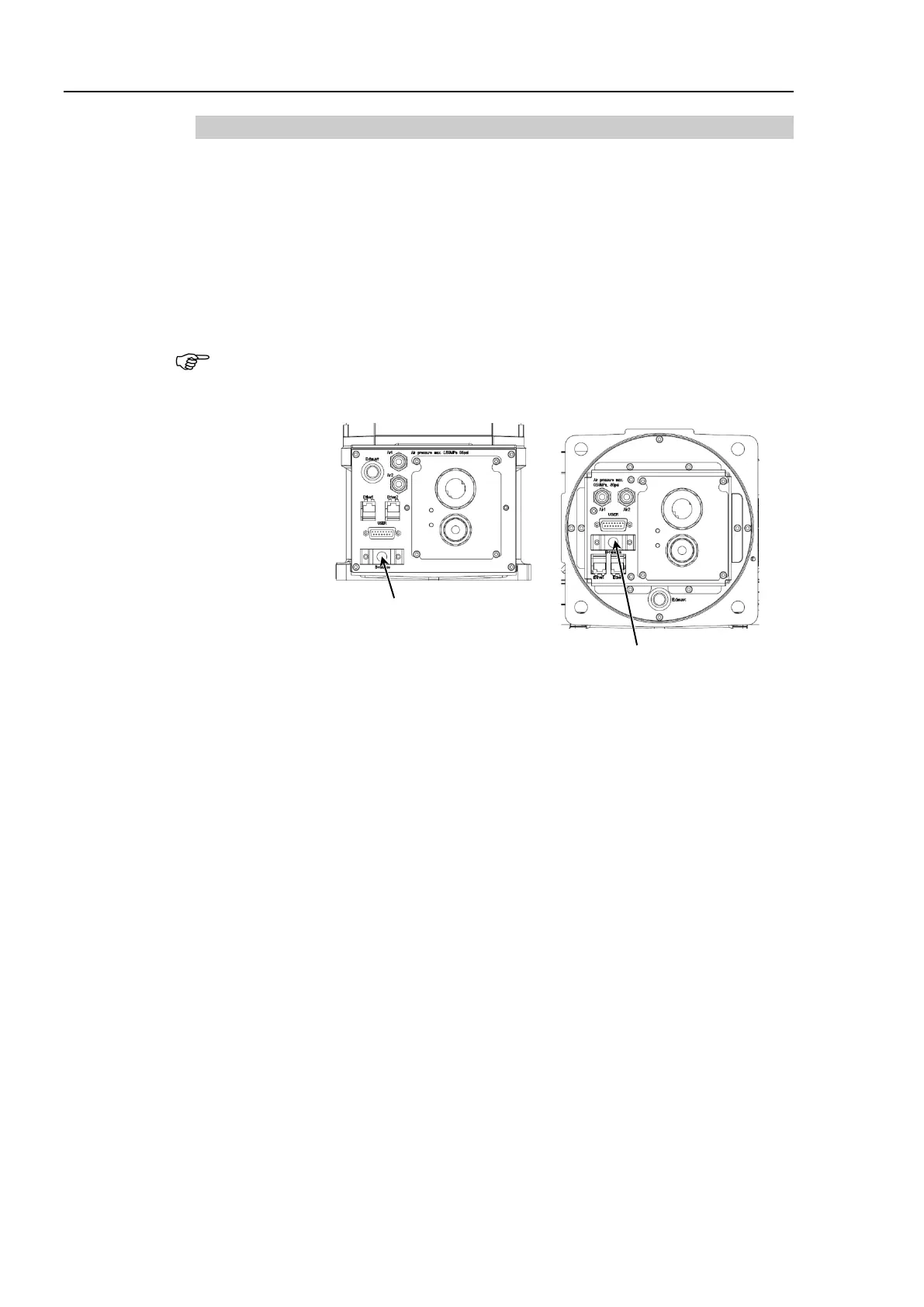

M/C cable direction
: Standard (backward)
Upward and downward
External short connector
External short connector
NOTE
