Epson N6 Series - Replacing the Encoder Board 2

Maintenance 7. Boards
340 N6 Rev.2

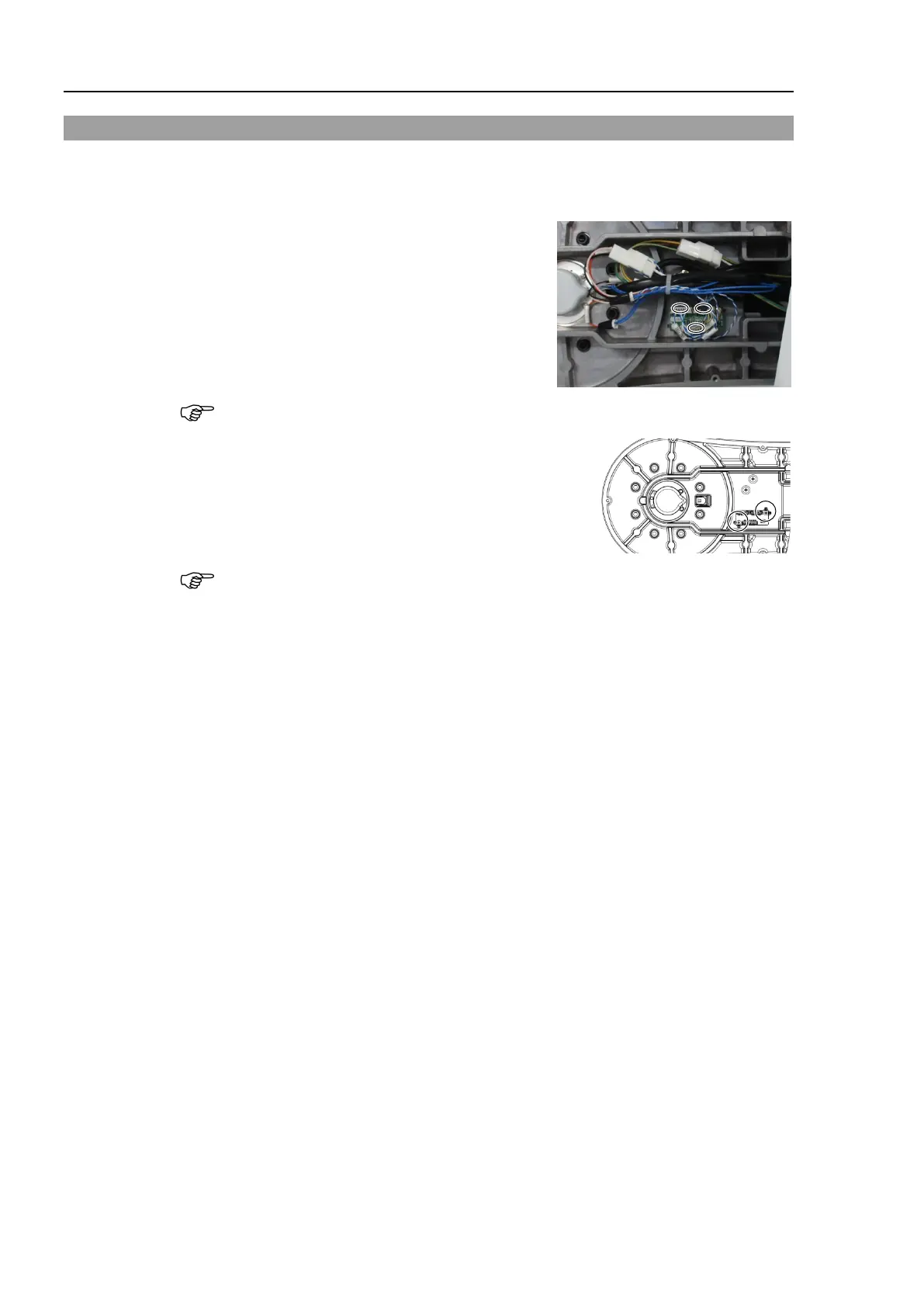

7.4 Replacing the Encoder Board 2
Removal
Encoder Board
2
(1)
Remove the Arm #2
cover (Arm #1 side).
For details, refer to Maintenance 3. Covers.
Disconnect
the connectors connected to the
encoder board 2.
Connectors: EB02_CN1
EB0x_CN2 (Joint #2 side)
EB0x_CN2 (Joint #3 side)
Be careful that the jumper pins on the board do not come off.
(2)
Remove the encoder board 2.
Cross recessed binding head machine screws:
2-M3×6
Be careful not to drop the screws inside the Manipulator while removing
them.

NOTE

NOTE
