Maintenance 7. Boards
N6 Rev.2 335

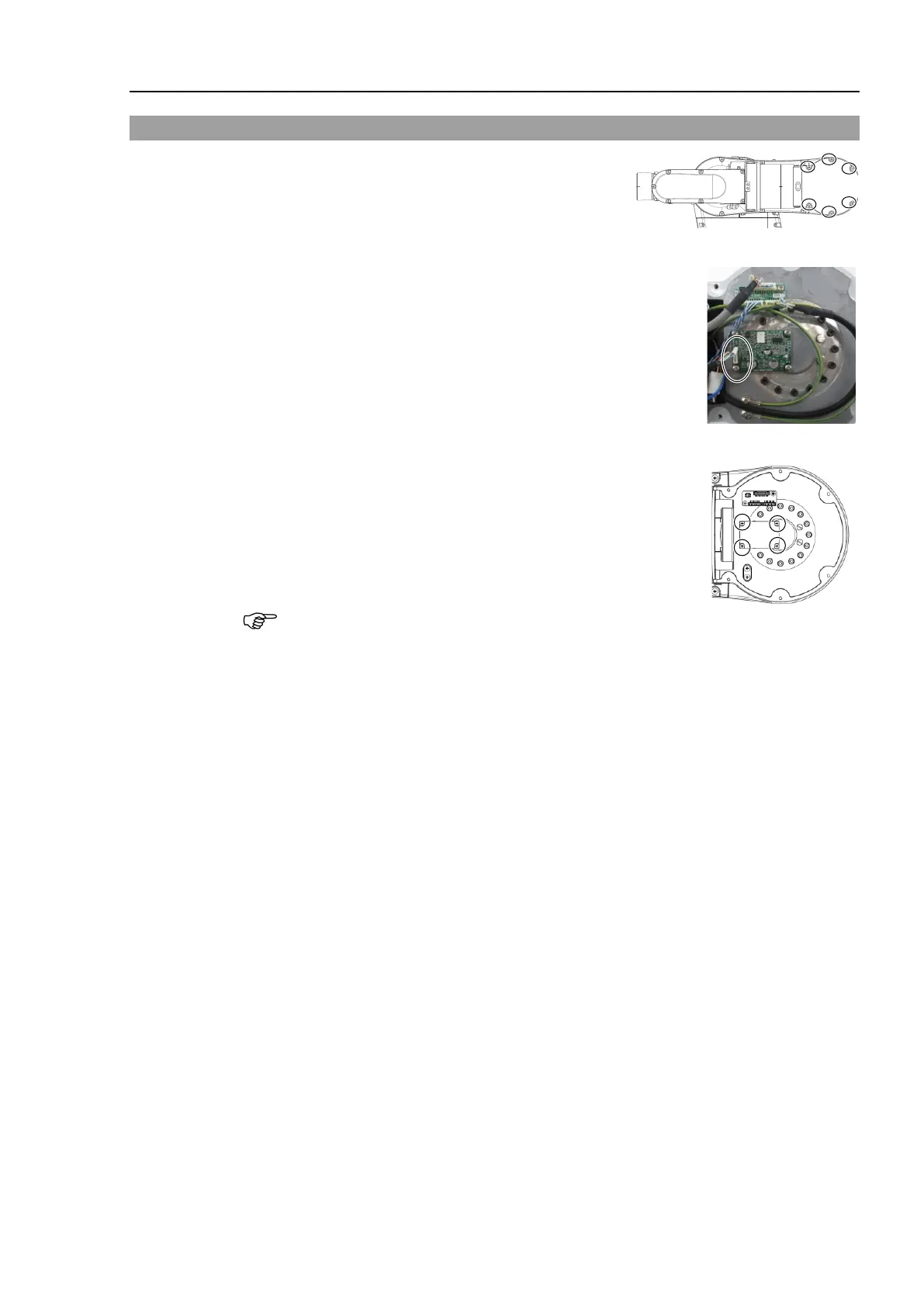

7.2 Replacing the Control Board 2
Removal
Control Board
2
(1)
Remove the Arm #3 cover.
Cross recessed binding head machine screws:
6-M4×8
(2)
Disconnect
the connector connected to the control board 2.
Connector: GS02
(3)
Remove the control board
2.
Cross recessed binding head machine screws: 4-M3×6
Be careful not to drop the screws inside the Manipulator while removing them.

NOTE
