Maintenance 3. Covers
122 N6 Rev.2
3.4 Arm #1 Inside Cover
3.4.1 N6-A1000** (Arm #1 Inside Cover)
CAUTION
■
When installing the cover, b
e careful not to get the cables caught in it or bend
m forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous
and may result in electric
shock and/or improper function of the robot system.
routing the cables, check the cable locations at removing the cover. Be
place the cables back to their original locations.

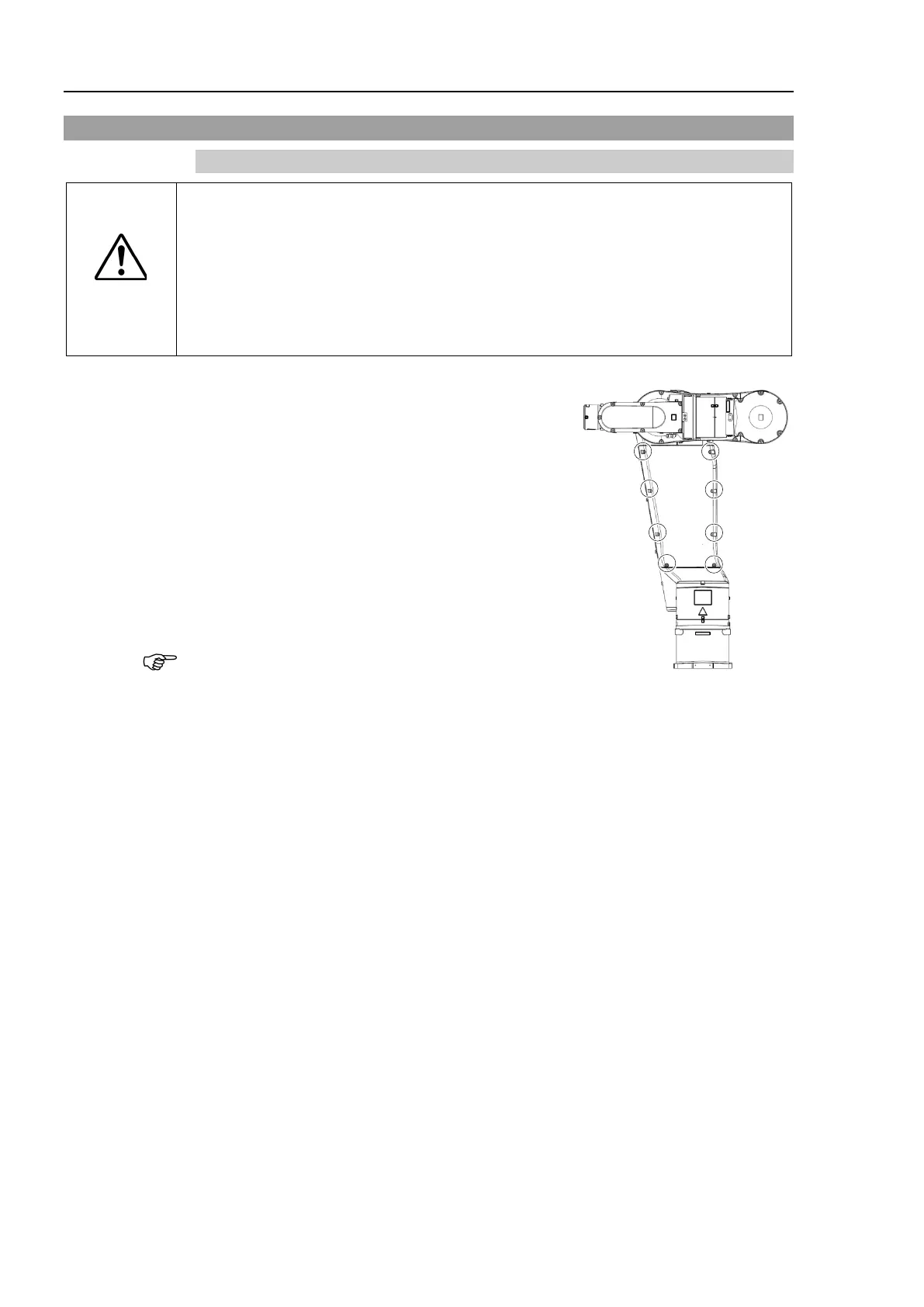

Remove the screws, and then remove the Arm #1 inside
cover.
Cross recessed binding head machine screw: 8-M4×8
Install the Arm #1 inside cover to the
Manipulator and
Cross recessed binding head machine screw: 8-M4×8
Tightening torque: 0.45±0.05 N·m
The cover may get broken if it is
fastened too tight.
e careful not to exceed the above tightening torque.
To Next Page
