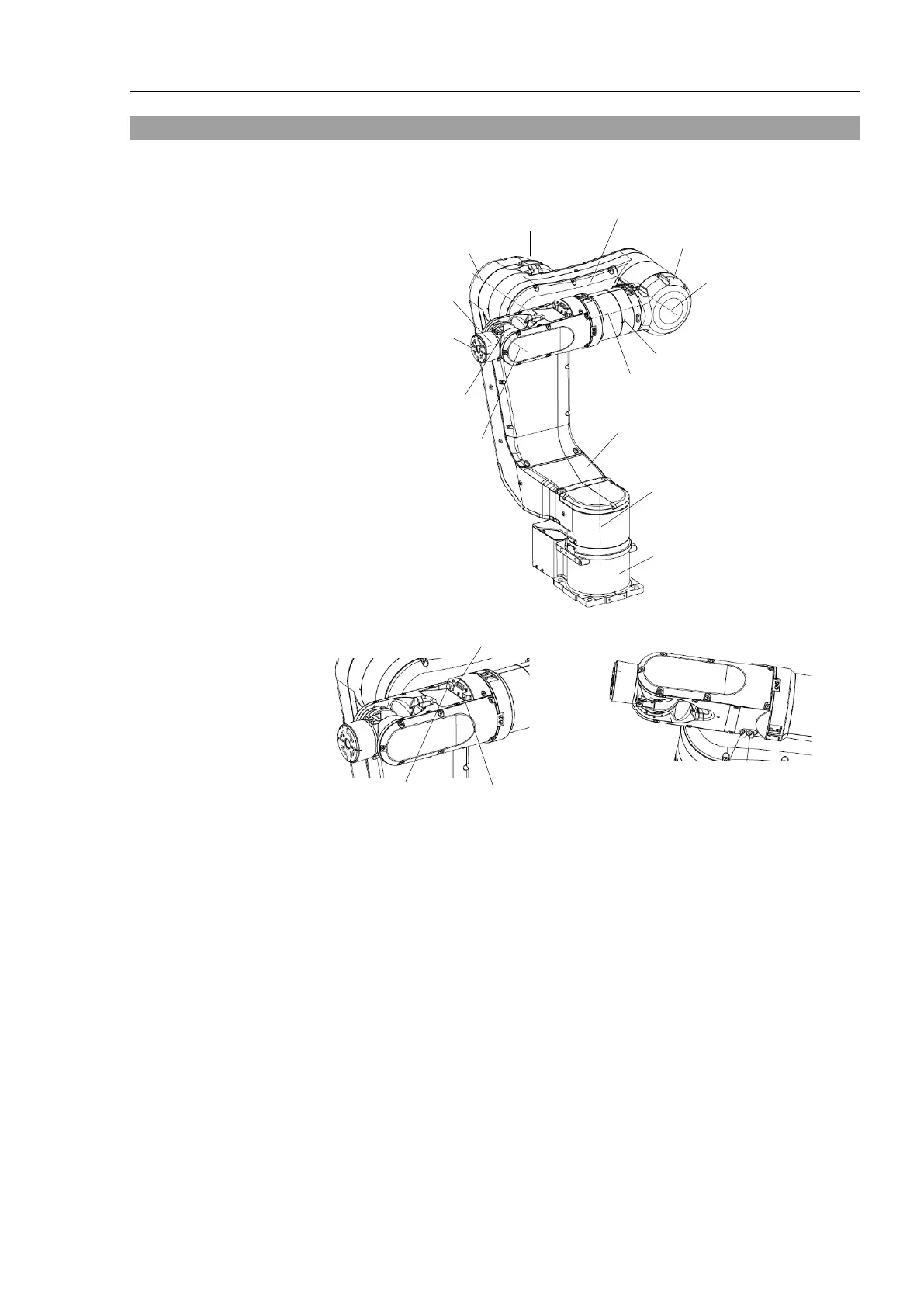

2.2 Part Names
N6-A1000**
Base
Arm #1
Joint #2
Arm #2
Joint #1
Joint #3
Arm #3
Joint #4
Arm #4
Joint #5
Arm #5
Joint #6
Arm #6
LED
Lamp
One-touch fittings for ø6 mm pneumatic tubes
Air 2 Air 1
Ether
2
Ether 1
Ethernet cable connector
s
User cable connector
User
When the LED lamp is lighting or the controller power is on, the current is being applied
to the manipulator. (The LED lamp may not be seen depending on the Manipulator’s
posture. Be very careful.) Performing any work with the power ON is extremely
hazardous and it may result in electric shock and/or improper function of the robot system.
Make sure to turn OFF the controller power before the maintenance work.

