Setup & Operation 2. Specifications
18 N6 Rev.2

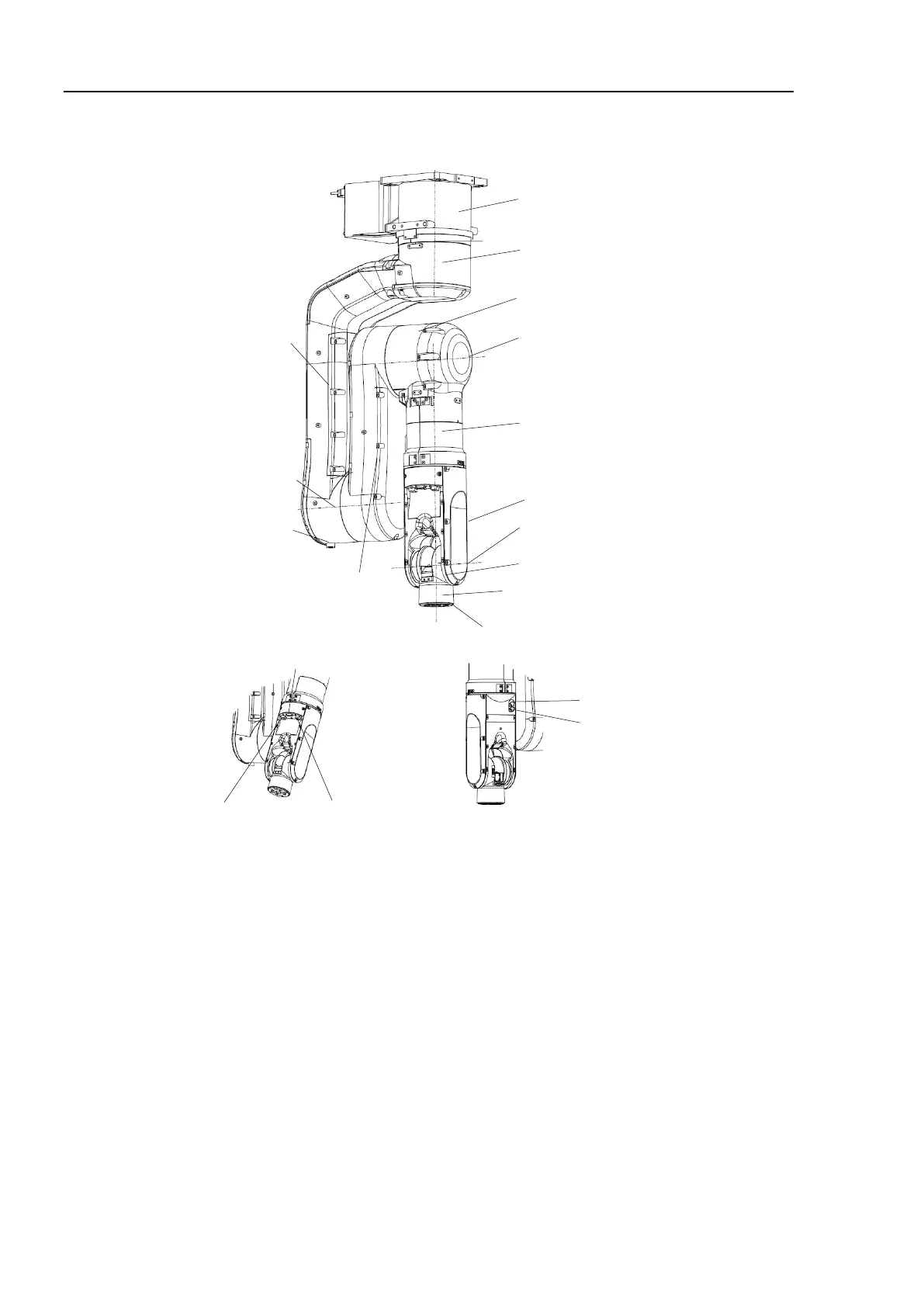

N6-A850**R
Base
Arm #1
Joint #
2
Arm #2
Joint #
1
Joint #3
Arm #3
Joint #4
Arm #4
Joint #5
Arm #5
Joint #6
Arm #6
LED Lamp
One-touch fittings for ø6 mm
pneumatic tube
s
Ether 2
Ether 1
Ethernet
cable connectors
User cable connector
User
Air 1
Air 2
When the LED lamp is lighting or the controller power is on, current is being applied to
the manipulator. (The LED lamp may not be seen depending on the Manipulator’s
posture. Be very careful.) Performing any work with the power ON is extremely
hazardous and it may result in electric shock and/or improper function of the robot system.
Make sure to turn OFF the controller power before maintenance work.

