Setup & Operation 2. Specifications
N6 Rev.2 19
N6-A1000** / N6-A850**R

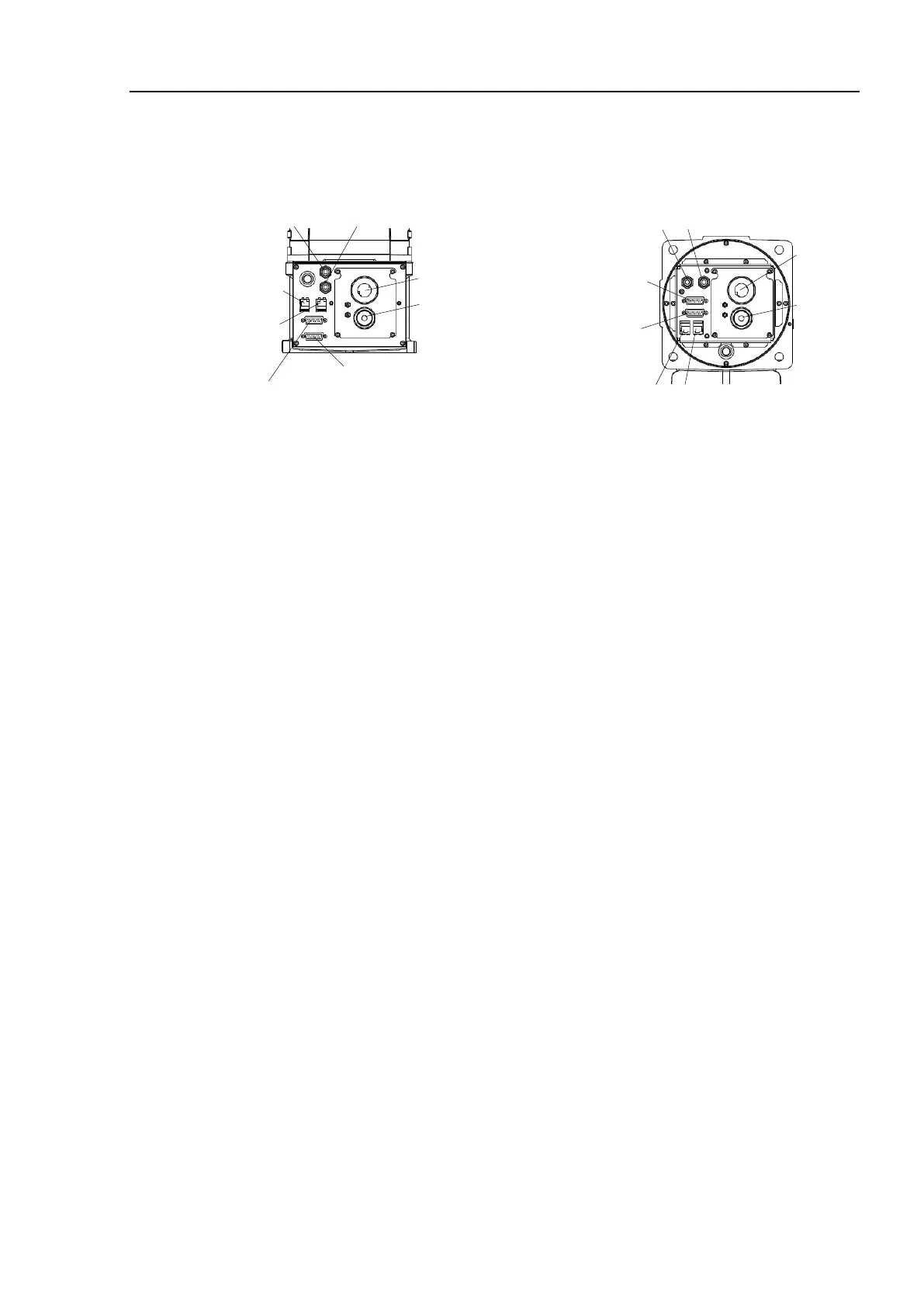

Cable direction: Standard (backward)
Air 2
Air 1
One-touch fittings for ø6 mm pneumatic tubes
Signal cable
Brake release connector
: B-release
Ether 1
Ether 2
Ethernet
cable
connector
User cable connector
: User
Power cable
Cable direction: Upward and Downward
Air 2
One-touch fittings for ø6 mm pneumatic tubes
Signal cable
Brake release
connector
: B-release
Ether 1
Ether 2
Ethernet cable connector
User cable
connector
: User
Power cable
Air 1
