Epson N6 Series - Replacing the Encoder Board 1

Maintenance 7. Boards
N6 Rev.2 337

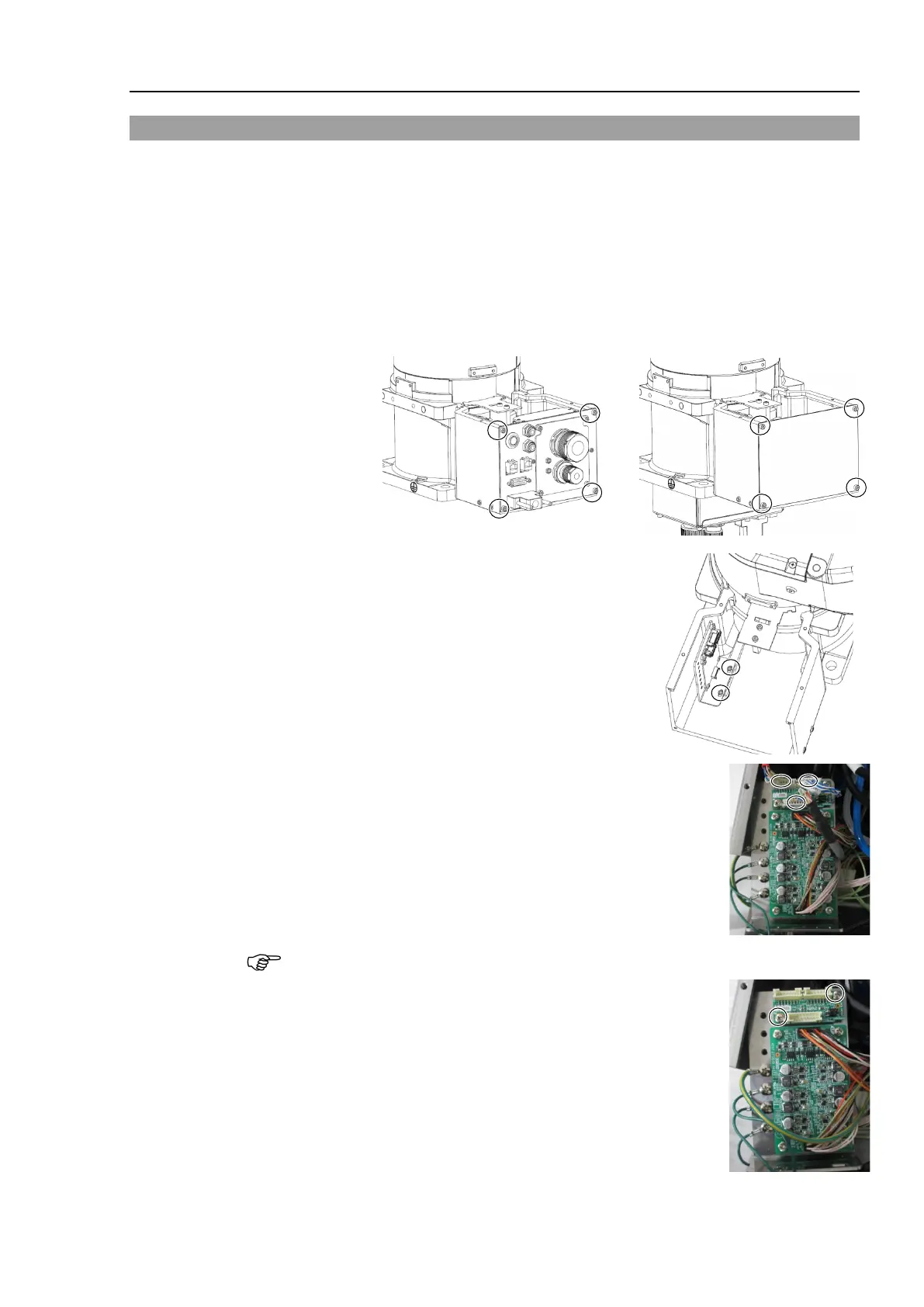

7.3 Replacing the Encoder Board 1
Removal
(1)
Turn
OFF the Controller.
Encoder Board 1
(2)
Remove the base cover.
For details, refer to Maintenance 3. Covers.
(3)
Remove the base side plate.
Hexagon socket head cap bolts: 4-M4×8
M/C cable direction: Standard (backward)
Upward and downward
(4)
Remove the board fixing plate
in the base.
Hexagon socket head cap bolts: 2-M3×6
(5)
Disconnect
the connectors connected to the encoder board 1
Connectors:
EB01_CN1, EB01_CN3, EB0x_CN2
Be careful that the jumper pins on the board do not come off.
(6)
Remove the encoder board 1.
Cross recessed binding head machine screws: 2-M3×6

NOTE
