Maintenance 7. Boards
348 N6 Rev.2

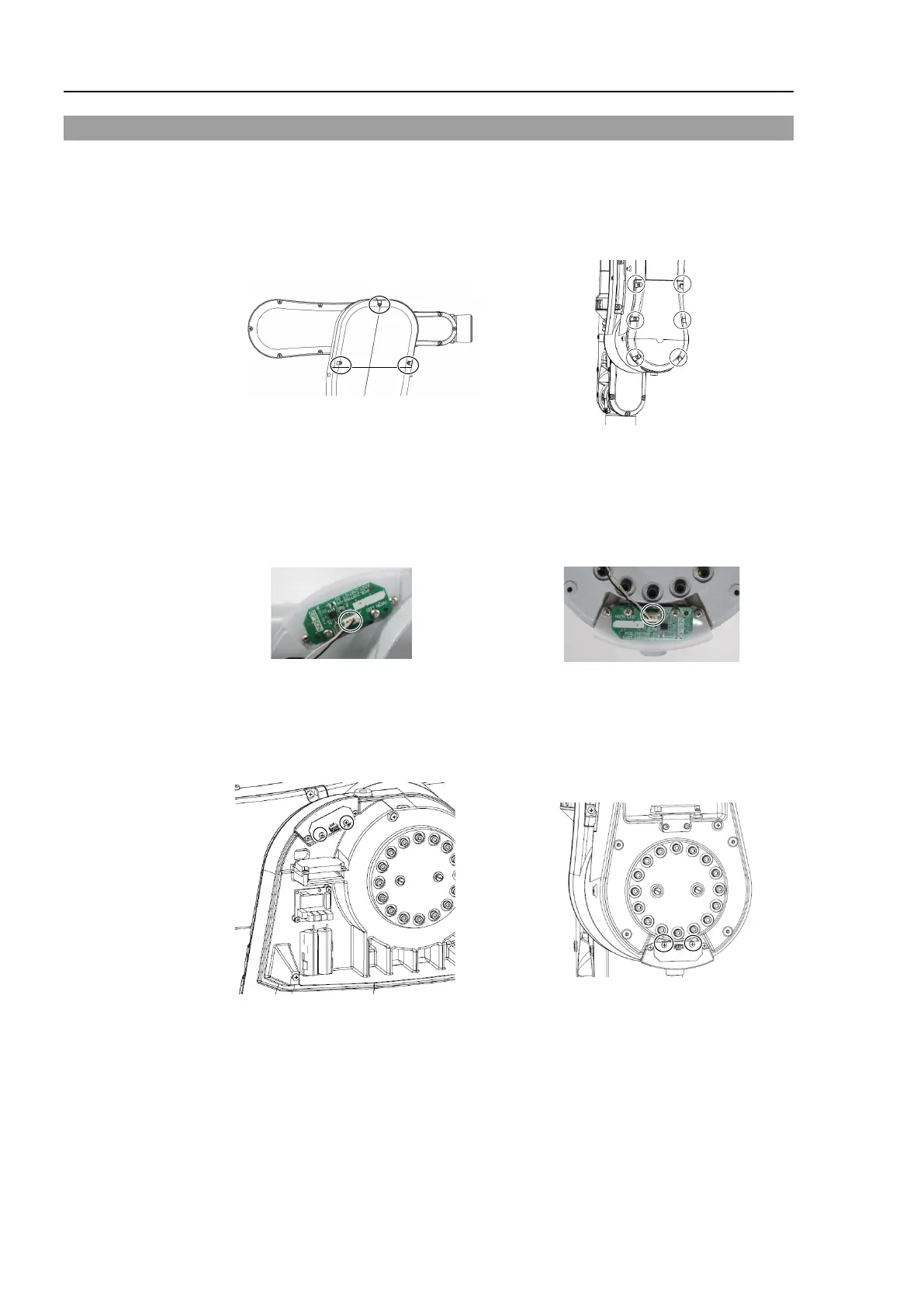

7.8 Replacing the LED Board
Removal
(1)
Turn OFF the controller.
LED Board
(2)
Remove the Joint #
2 outside cover.
N6-A1000**
N6-A850**R
Cross recessed binding head
machine screws: 3-M4×8
Cross recessed binding head
machine screws: 6-M4×8
(3)
Disconnect
the connector connected to the LED board.
Connector: LED_CN1
N6-A1000**
N6-A850**R
(4)
Remove the LED board.
Cross recessed binding head machine screws: 2-M3×6
N6-A1000**
N6-A850**R
