4.5.2 Relay Cable 2

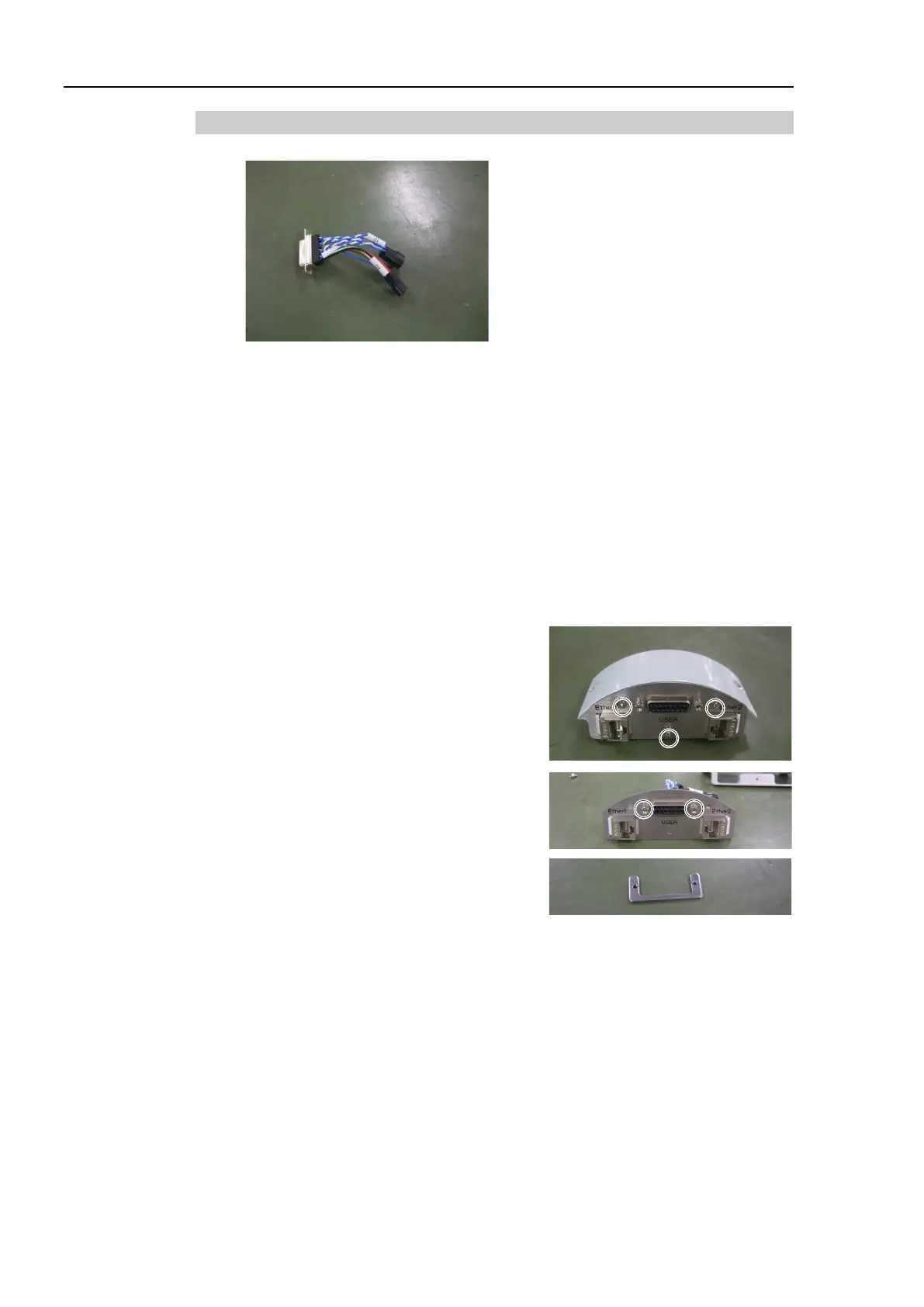

Relay Cable 2
Removal
Relay Cable
2
(1)
Remove the Arm #4 side cover (2 covers).
For details, refer to Maintenance 3.14 Arm #4 Side Cover.
(2)
Remove the user attachment.
For details, refer to the following sections:
Removal steps (9) through (11) in Maintenance 4.1 Cable Unit (N6-A1000*):
Cable direction Standard (backward).
Removal steps (9) through (11) in Maintenance 4.3 Cable Unit (N6-A850*R):
Cable direction Standard (backward).
(4)
Disconnect the connector plate.
Hexagon socket head cap bolts: 3-M3×5
(5)
Disconnect the relay cable 2.
Be careful not
to lose the fixing plate.
