Maintenance 4. Cable
N6 Rev.2 253
Installation
Relay Cable
2
(1)

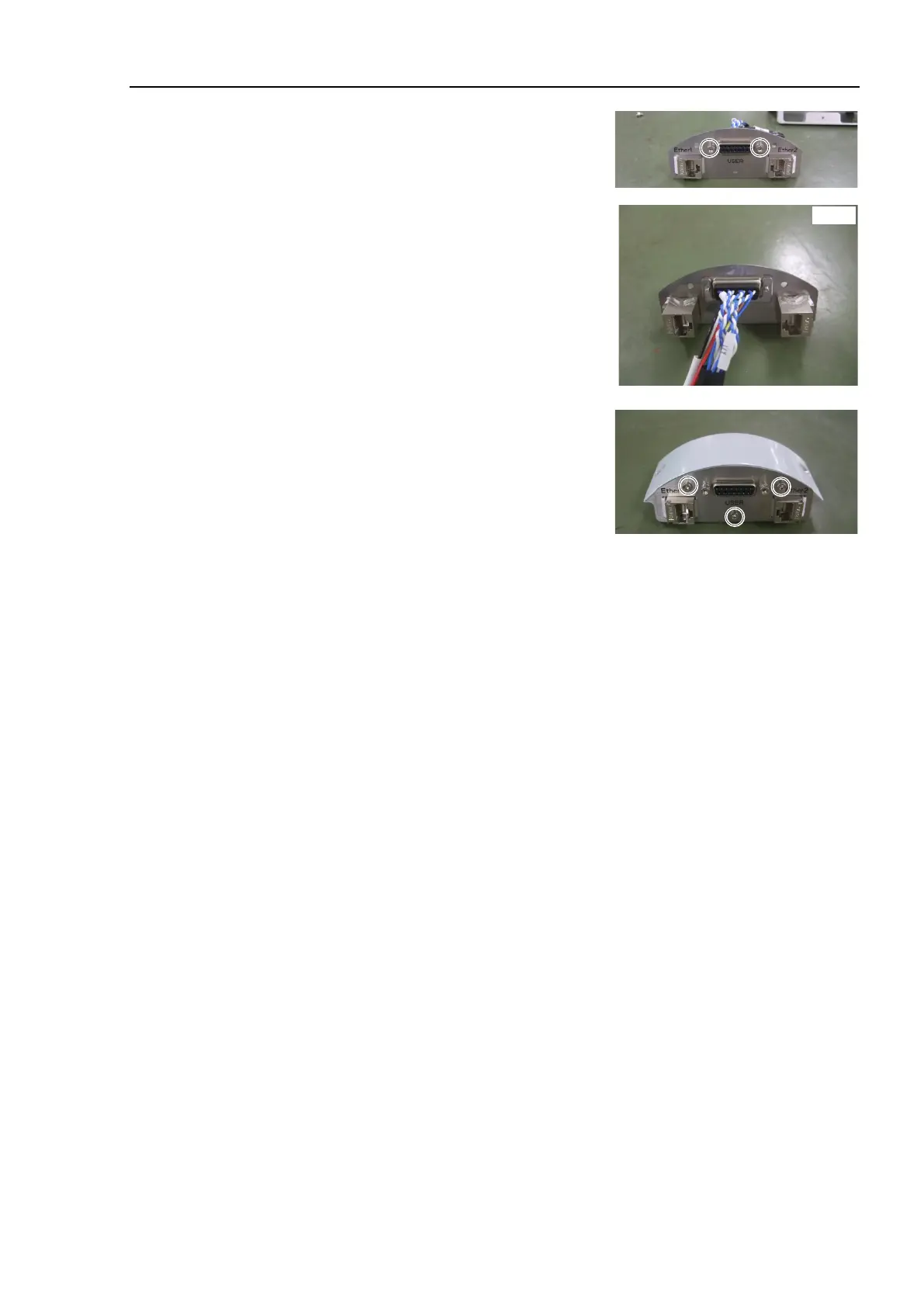

Connect the relay cable 2 to the connector plate.
Attached nut and washer will not be used.
Please dispose them by yourself.
Back
(2)
Install the connector plate on the user
attachment.
Hexagon socket head cap bolts: 3-M3×5
Tightening torque: 2.0 ± 0.1 N·m
(3)
Install the user attachment on the Arm #4.
For details, refer to the following section:
Installation steps (46), (51), and (52) in Maintenance 4.1 Cable Unit (N6-A1000*):
Cable direction Standard (backward).
Installation steps (49), (54), and (55) in Maintenance 4.3 Cable Unit (N6-A850*R):
Cable direction Standard (backward).
(4)
Install the Arm #4 side cover (2 covers).
For details, refer to Maintenance 3.14 Arm #4 Side Cover.
