Maintenance 3. Covers
N6 Rev.2 147
3.15 Arm #4 Cable Cover
CAUTION
When installing the cover, b
e careful not to get the cables caught in it or bend
the
m forcibly to push into the cover.
Unnecessary strain on cables may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result in electric
shock and/or improper function of the robot system.
When
routing the cables, check the cable locations at removing the cover. Be
sure to
place the cables back to their original locations.

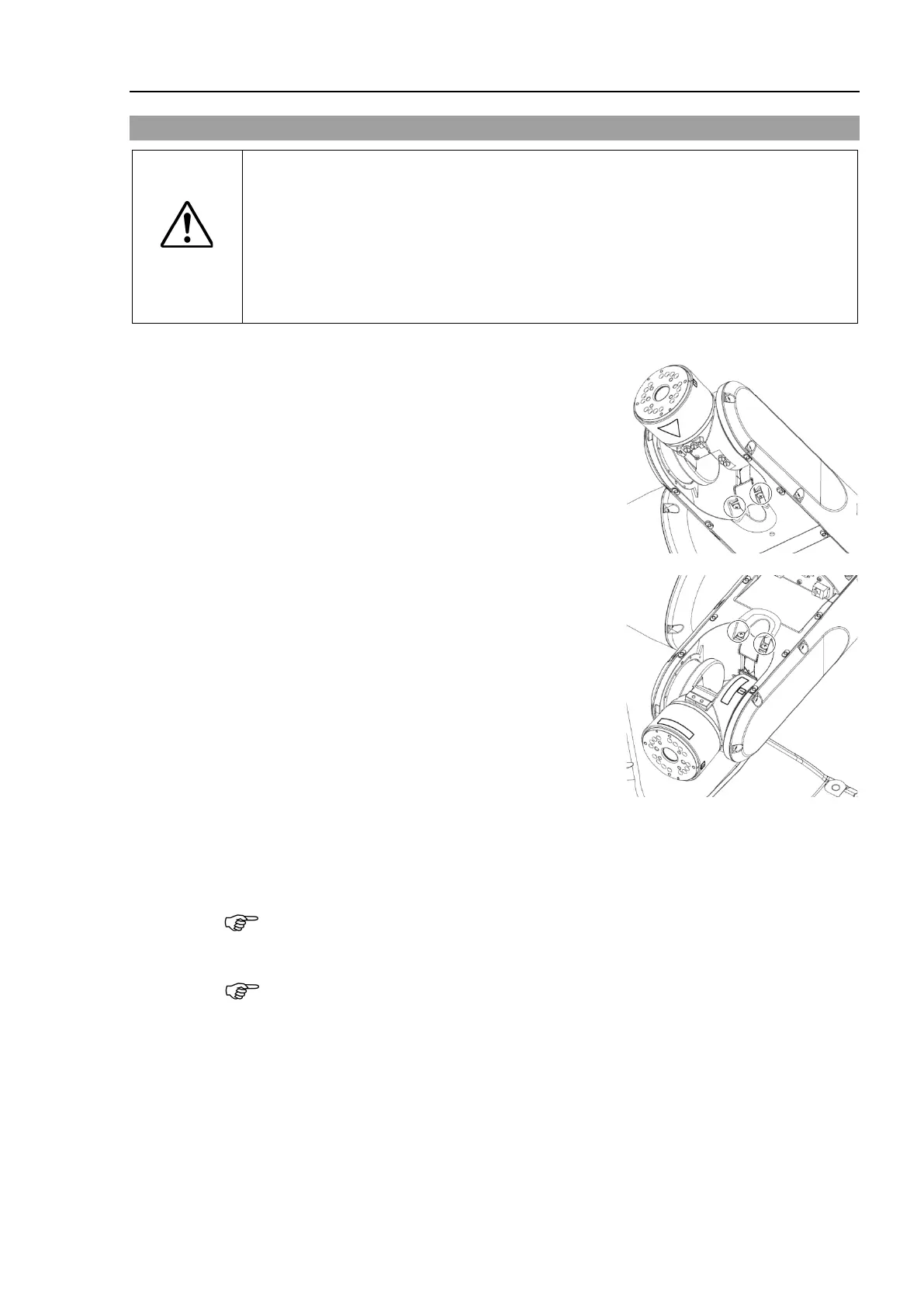

Removal
Remove
the screws, and then remove the Arm #4
cable covers
(2 covers).
Cross recessed binding head machine screw:
4-M4×8
Installation
Set the
Arm #4 cable covers (2 covers) and fix them with the screws.
Cross recessed binding head machine screw: 4-M4×8
Tightening torque: 0.45 ± 0.05 N·m
The cover may get broken if it is
fastened too tight.
B
e careful not to exceed the above tightening torque.
When passing cables, b
e careful not to get the cables caught in the covers.
NOTE
NOTE
