Epson N6 Series User Manual

Maintenance 3. Covers
114 N6 Rev.2

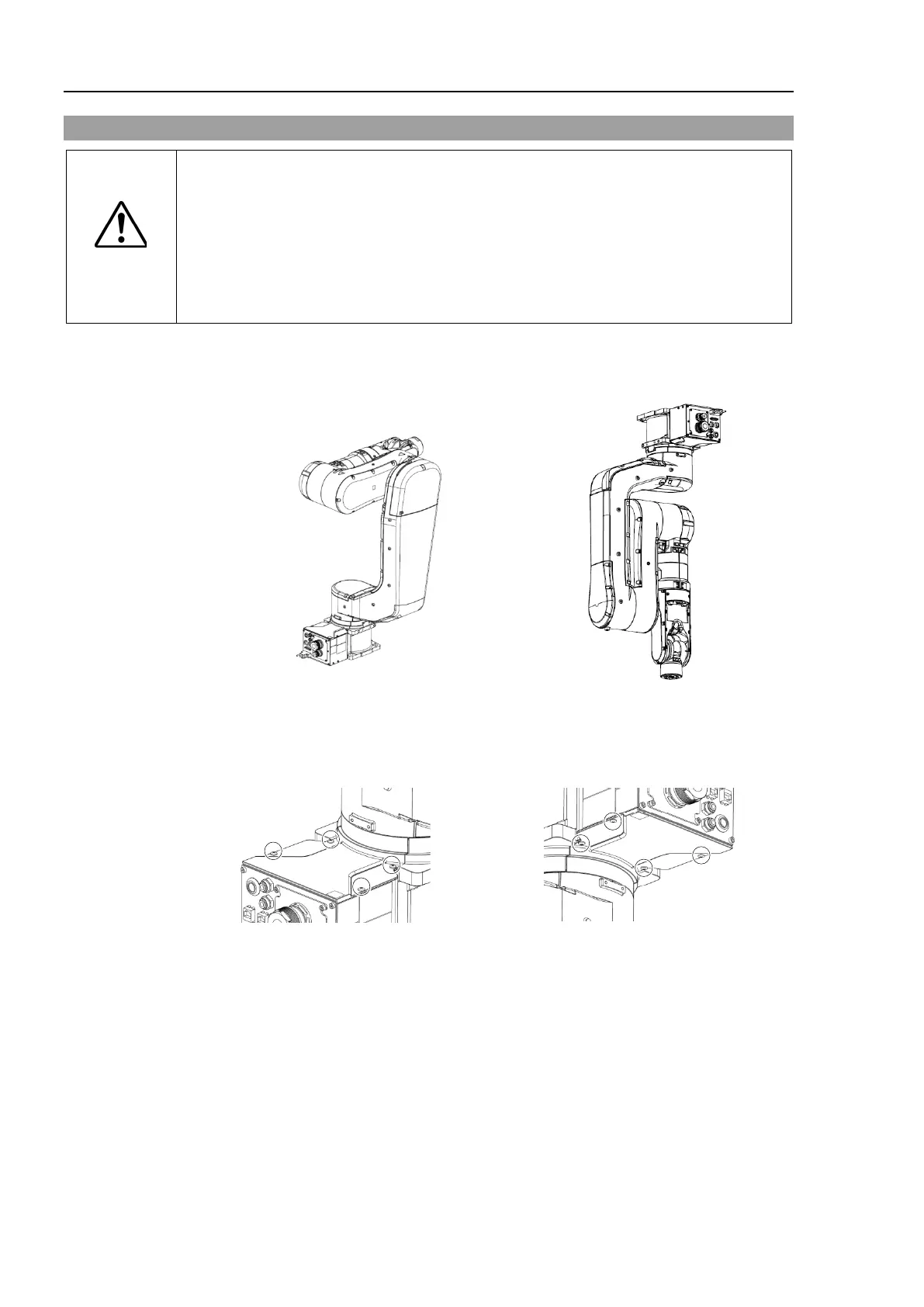

3.1 Base Cover
CAUTION
■
When installing the cover, b
e careful not to get the cables caught in it or bend
the
m forcibly to push into the cover.
Unnecessary
strain on cables may result in damage to the cables, disconnection,
and/or contact failure. These are extremely hazardous and may result in electric
shock and/or improper function of the robot system.
When
routing the cables, check the cable locations at removing the cover. Be
sure to
place the cables back to their original locations.
Removal
(1)
Move the Arm #1 to a position where you can remove the the base cover.
N6-A1000**
N6-A850**R
(2)
R
emove the screws, and then remove the base cover.
Cross recessed binding head machine screw: 4-M4×8
N6-A1000**
N6-A850**R
