Maintenance 3. Covers
N6 Rev.2 115

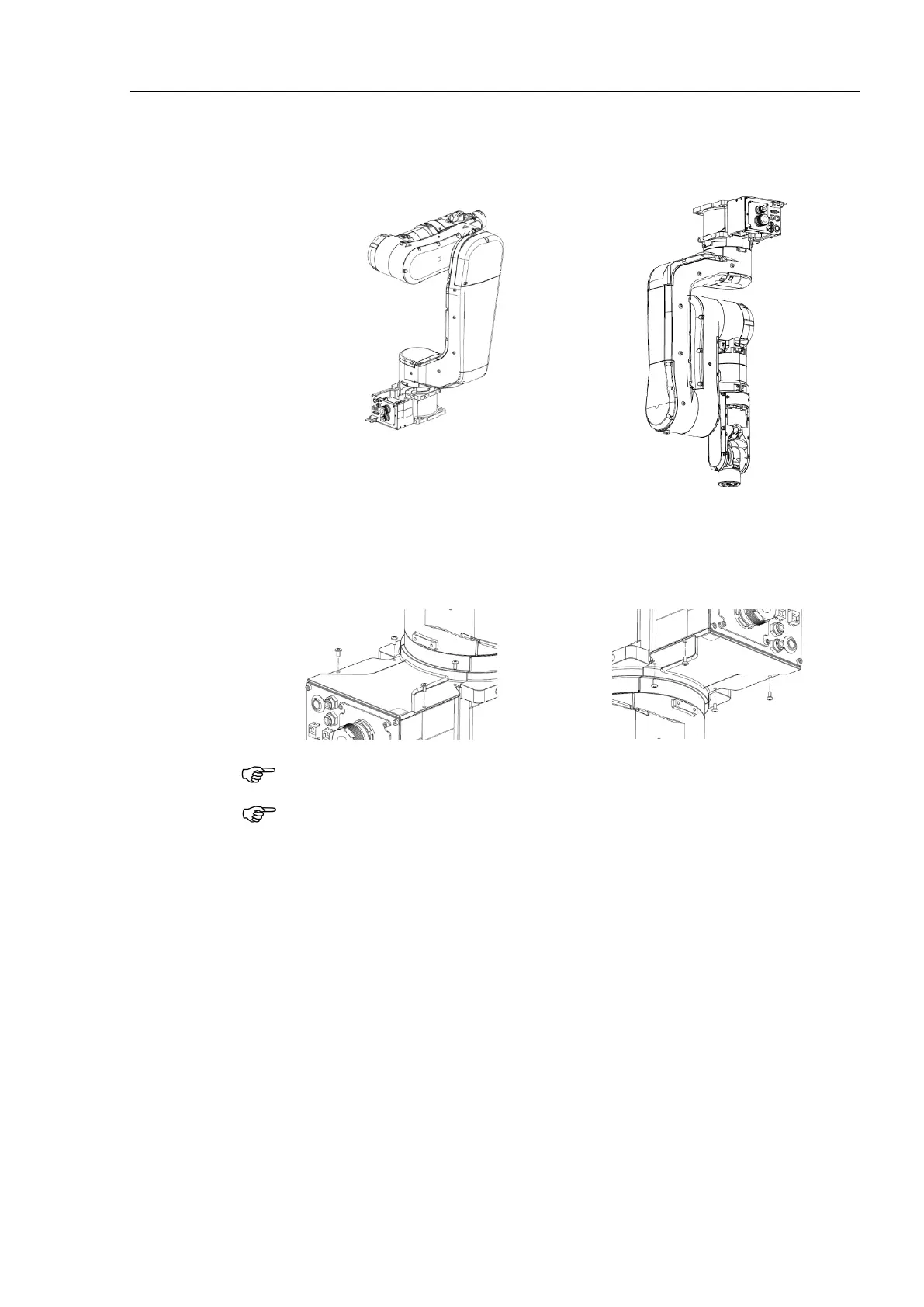

Installation
(1)
Move the Arm #1 to a position
where you can install the base cover.
N6-A1000**
N6-A850**R
(2)
Install the base cover.
Cross recessed binding head machine screw: 4-M4×8
Tightening torque: 0.45±0.05 N·m
N6-A1000**
N6-A850**R
Be careful not to get the cables caught in the cover.
The cover may get broken if it is
fastened too tight.
B
e careful not to exceed the above tightening torque.

NOTE

NOTE
