Setup & Operation 3. Environment and Installation
N6 Rev.2 35
3.3 Mounting Dimensions
3.3.1 Mounting Area
Be sure to have the following space available in addition to the space for mounting the
Manipulator, Controller, and peripheral equipment.
Space for teaching points
Space for maintenance and inspections (for installing jigs)
Space for cables
To prevent the power cable from bending, make sure to leave space for 150mm When
installing the cable, be sure to maintain sufficient distance from obstacles. In addition,
leave enough space for other cables to prevent them from bending.
[Unit: mm]
3.3.2 Mounting dimensions

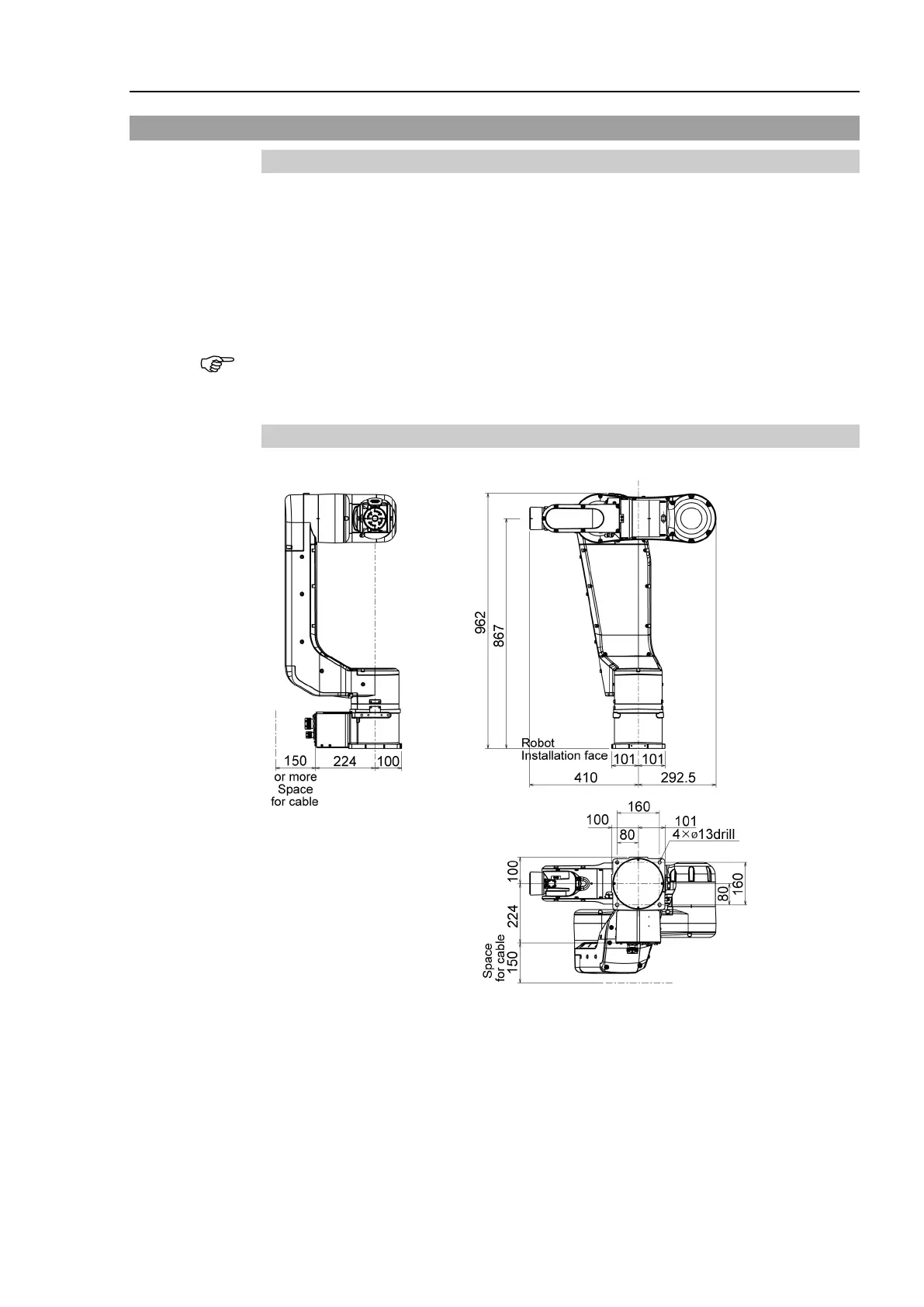

N6-A1000**: Cable direction: Standard (backward)
