Setup & Operation 3. Environment and Installation
34 N6 Rev.2
Using Eyebolt
Before carrying the Manipulator, make sure to check that the eyebolts are securely
fastened.
After transporting the Manipulator, remove the eyebolts and keep them for future use.

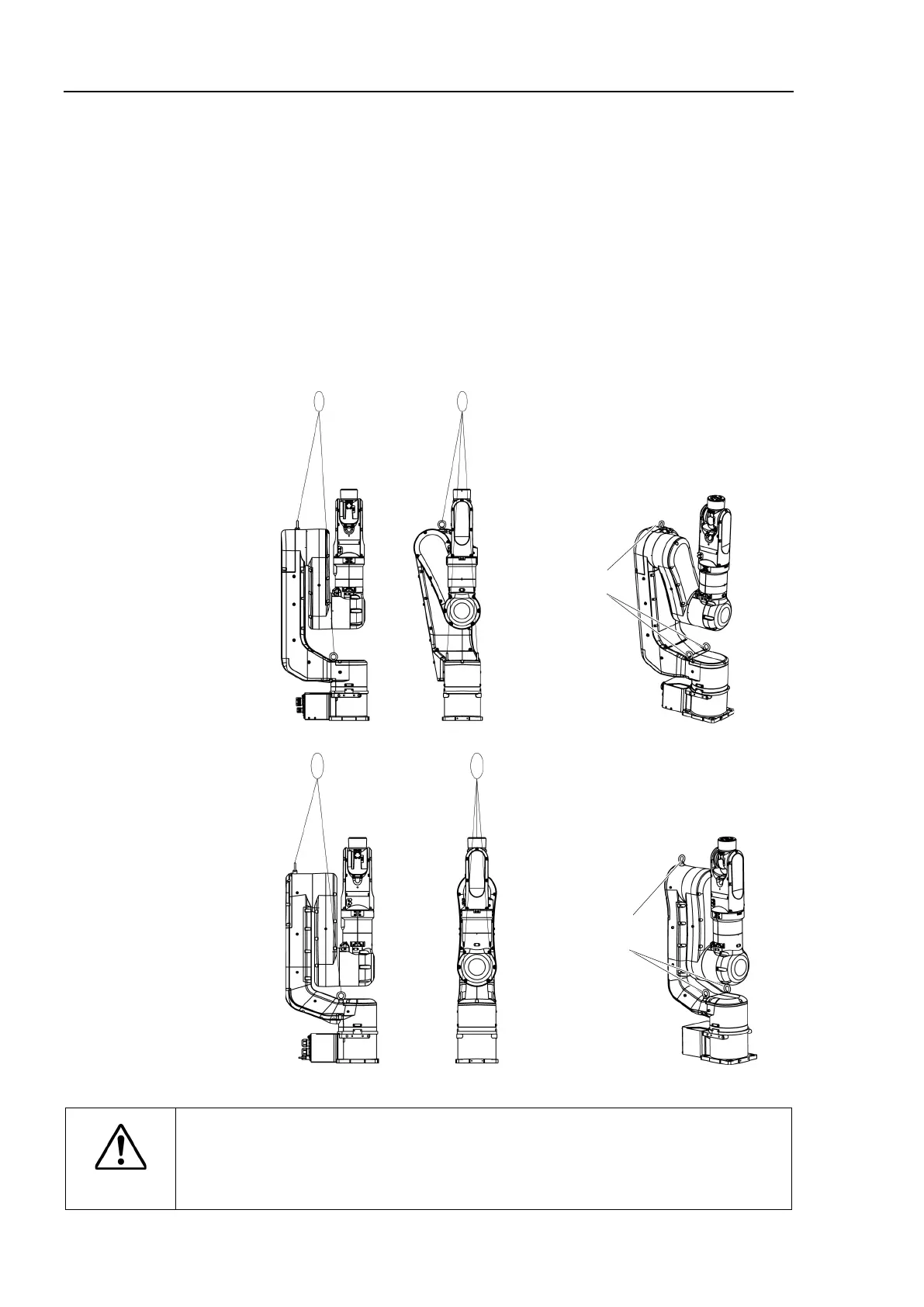

The eyebolts (accessory, 3 pcs) and wire must be strong enough to withstand the weight
(See the figures below).
If you use the eyebolts to lift up the Manipulator, make sure to put hands on it to keep the
balance. The Manipulator may fall if the balance is lost and this is extremely hazardous.
To prevent damage on the covers and arms, it is recommended to protect the contacting
parts of the wire and arm with a cloth. Be very careful not to damage the covers since
they are made of plastic.
N6-A1000**
Holes for eye bolt
3-M10 depth 18
Manipulator weight: 69 kg: 152 lb
N6-A850**R
Holes for eye bolt
3-M10 depth 18
Manipulator weight:64 kg: 141 lb
CAUTION
â–
Remove the eyebolts from the Manipulator after
transportation/relocation is
If the Manipulator is operated with the eyebolts left on it, the arm
may collide with
the eyebolts and it may cause equipment damage to and/or
Manipulator.
