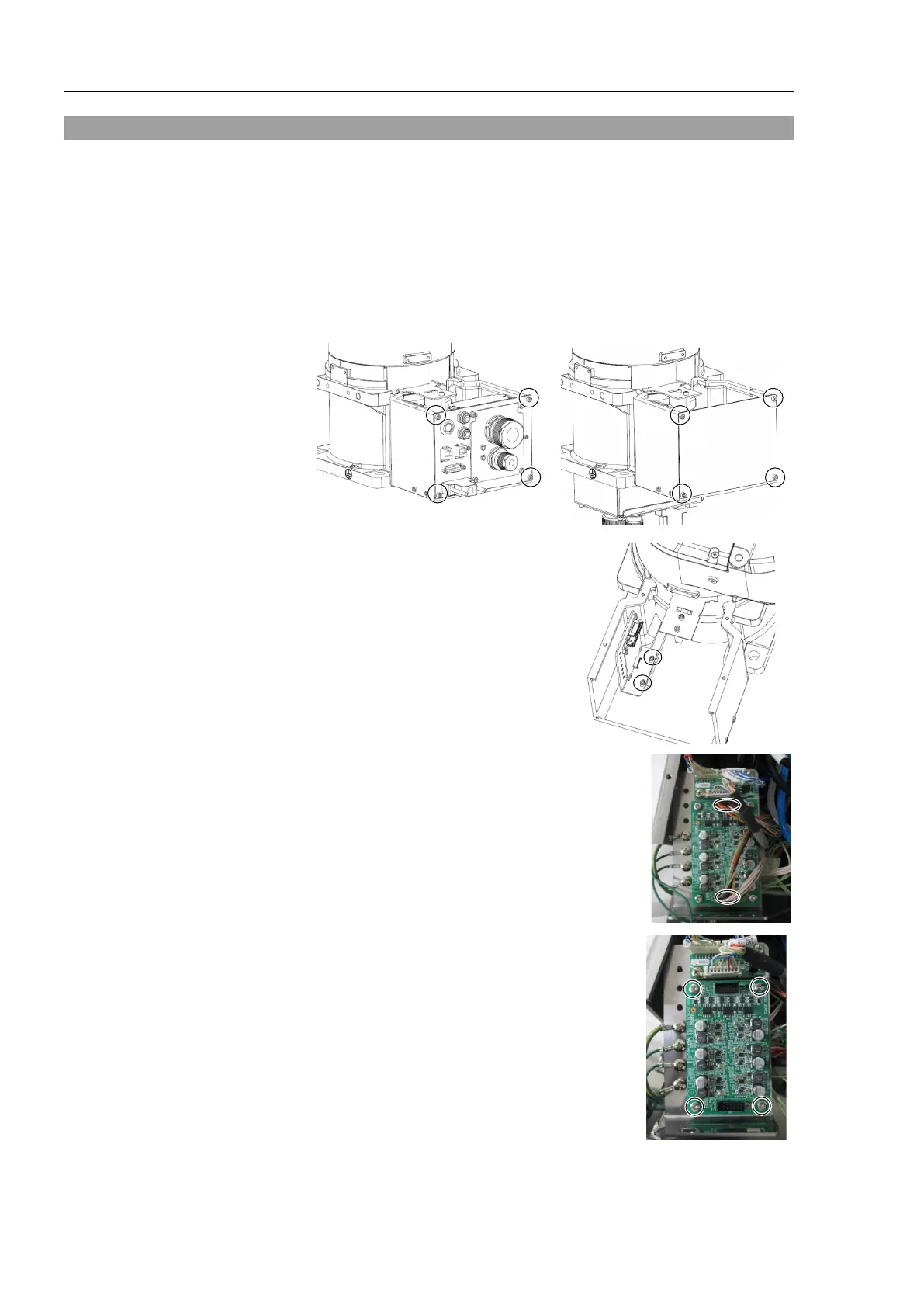

7.7 Replacing the Brake Board
Removal
(1)
Turn OFF
the controller.
Brake Board
(2)
Remove
the base cover.
For details, refer to Maintenance 3. Covers.
(3)
Remove the base side plate.
Hexagon socket head cap bolts: 4-M4×8
M/C cable direction: Standard (backward)
Upward and downward
(4)
Remove the board fixing plate in
the base.
Hexagon socket head cap bolts: 2-M3×6
(5)
Disconnect
the connectors connected to the brake board.
Connectors:
BRK_CN1, BRK_CN2
(6)
Remove the brake
board.
Cross recessed binding head machine screws: 4-M3×6
