Epson N6 Series User Manual

Maintenance 7. Boards
N6 Rev.2 333

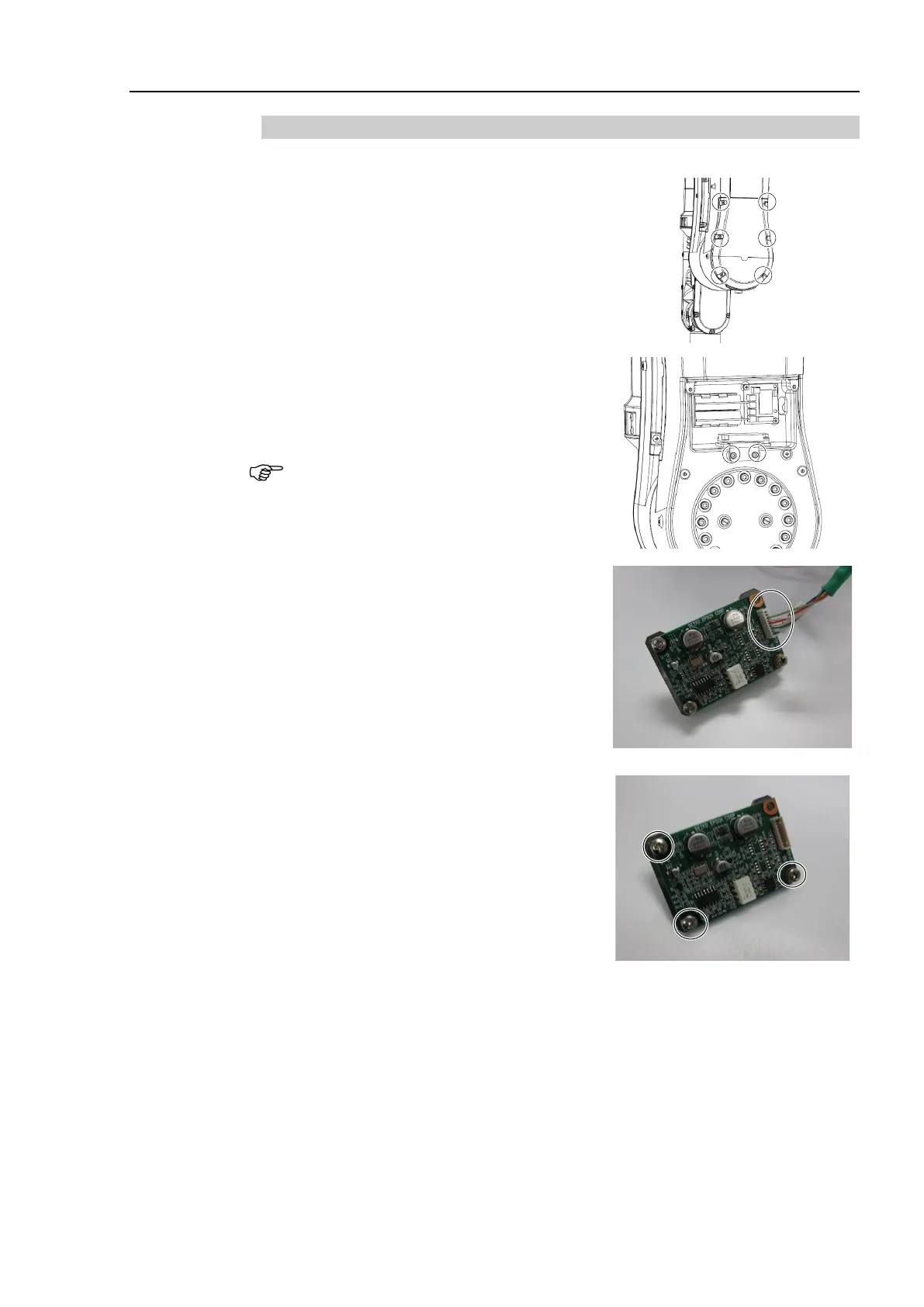

7.1.2 N6-A850**R (Control Board 1)
Removal
(1)
Turn OFF
the controller.
Control Board 1
(2)
Remove
the Joint #2 outside cover.
Cross recessed binding head machine screws:
6-M4×8
(3)
Remove the
control board fixing plate.
Cross recessed binding head machine screws:
2-M4×8
Cable is connected. Be careful not to pull the
plate f
orcibly.
(
4)
Disconnect
the connector connected to the
control
board 1.
Connector: GS01
(
5)
Remove the control board 1.
Cross recessed binding head machine screws:
3-M3×6

NOTE
