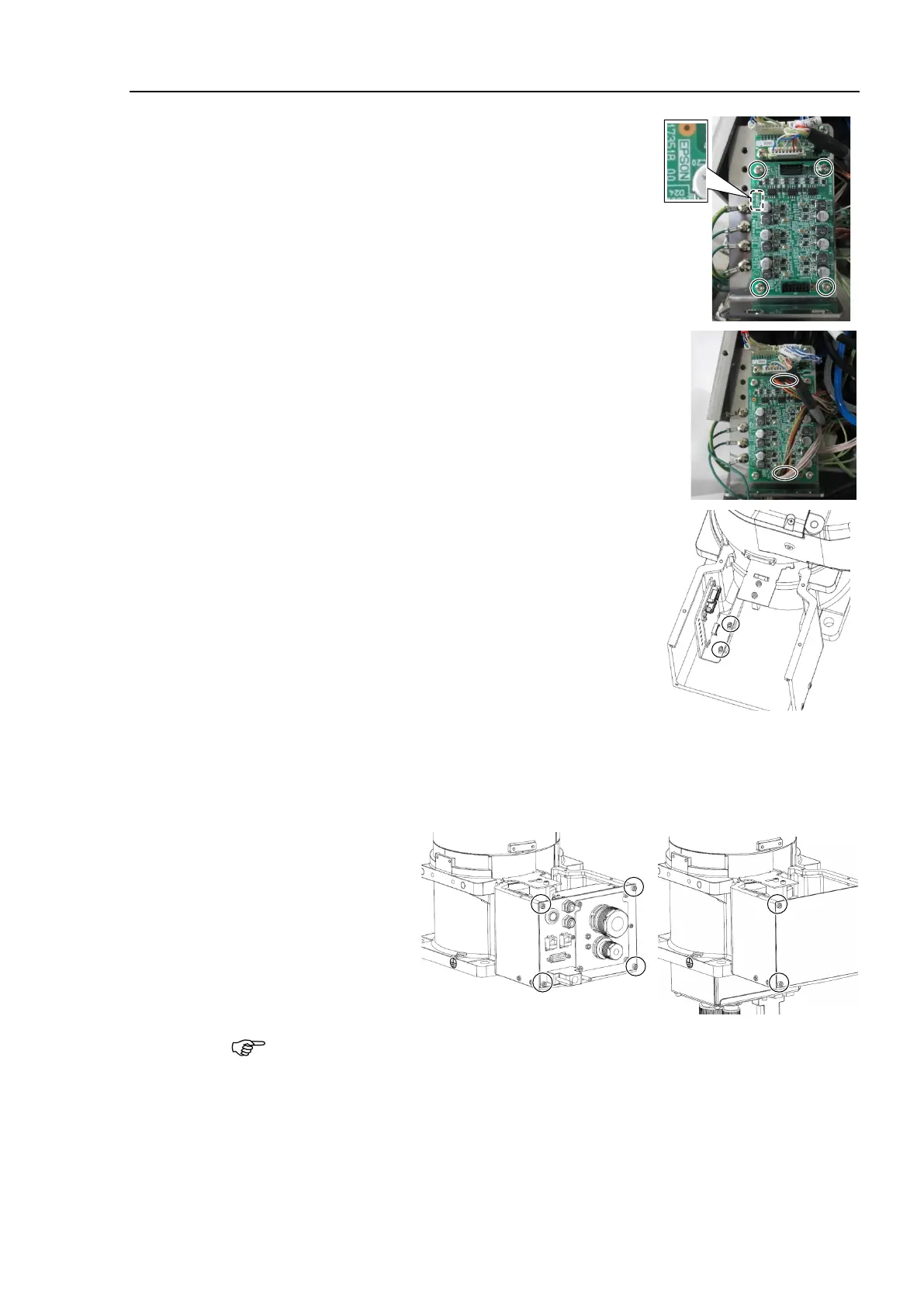

Brake Board
(1)
Install
the brake board to the board fixing plate.
Cross recessed binding head machine screws: 4-M3×6
Tightening torque: 0.45 ± 0.05 N·m
Make sure to install as the same direction as the picture.
(2)
Connect the
connectors to the brake board.
Connectors: BRK_CN1, BRK_CN2
(3)
Install the board fixing plate on the base.
Cross recessed binding head machine screws: 2-M3×6
Tightening torque: 2.0 ± 0.1 N·m
(4)
Install
the base side plate.
Hexagon socket head cap bolts: 4-M4×8
Tightening torque: 4.0± 0.2 N·m
M/C cable direction: Standard (backward)
Upward and downward
Be careful not to get the cables caught in the base.
(5)
Install the base cover.
For details, refer to Maintenance 3. Covers.
(6)
T
urn ON the controller.

NOTE
