Maintenance 7. Boards
N6 Rev.2 349
Installation

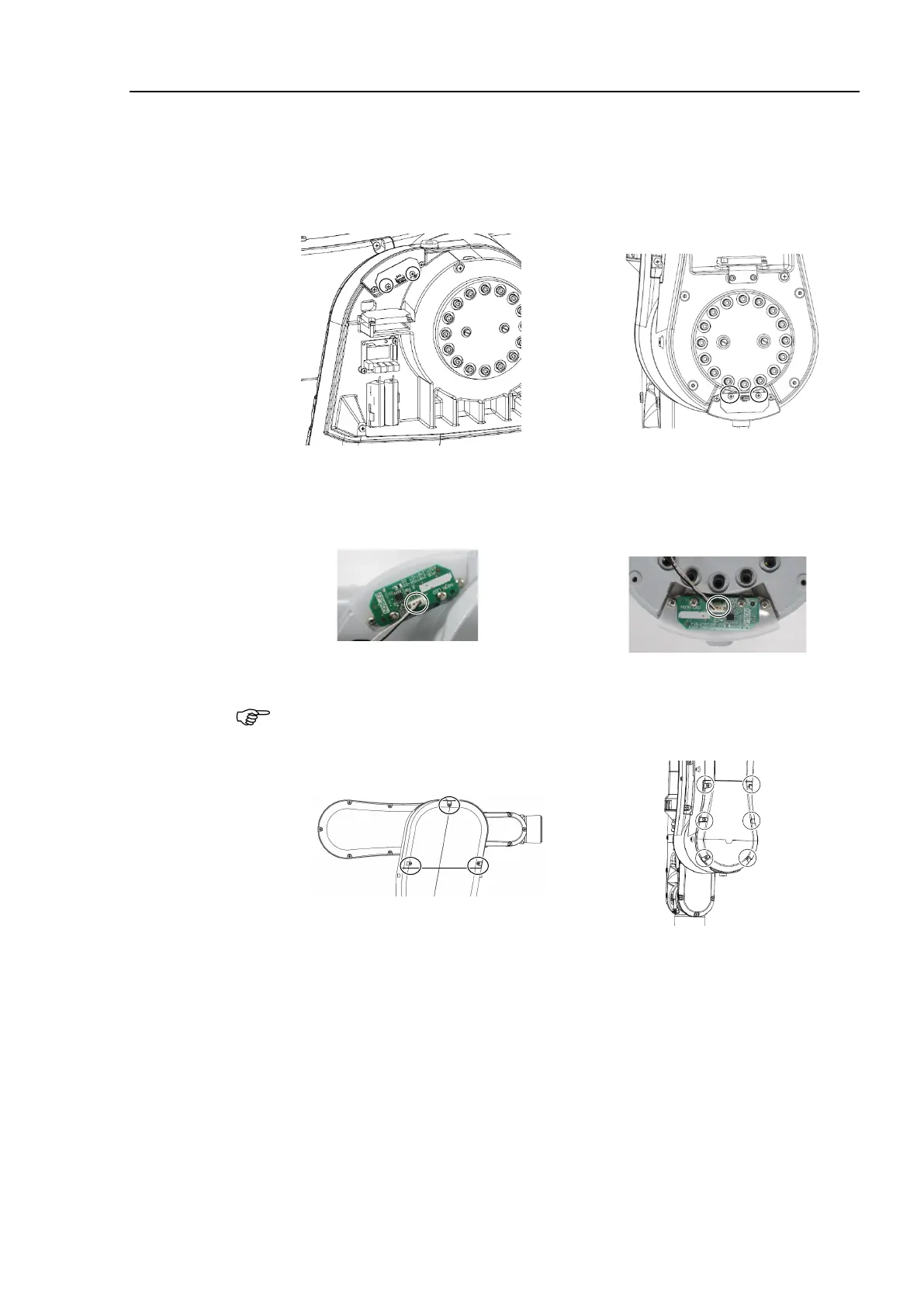

LED Board
(1)
Install the LED board.
Cross recessed binding head machine screws: 2-M3×6
Tightening torque: 0.45 ± 0.05 N·m
N6-A1000**
N6-A850**R
(2)
Connect the connector to the LED board
.
Connector: LED_CN1
N6-A1000**
N6-A850**R
(3)
Install the J
oint #2 outside cover.
B
e careful not to get the cables caught in the cover.
N6-A1000**
N6-A850**R
Cross recessed binding head
machine screws: 3-M4×8
Tightening torque: 0.45 ± 0.05 N·m
Cross recessed binding head
machine screws: 6-M4×8
Tightening torque: 0.45 ± 0.05 N·m

NOTE
