Maintenance 5. Actuator Units
276 N6 Rev.2
(5)

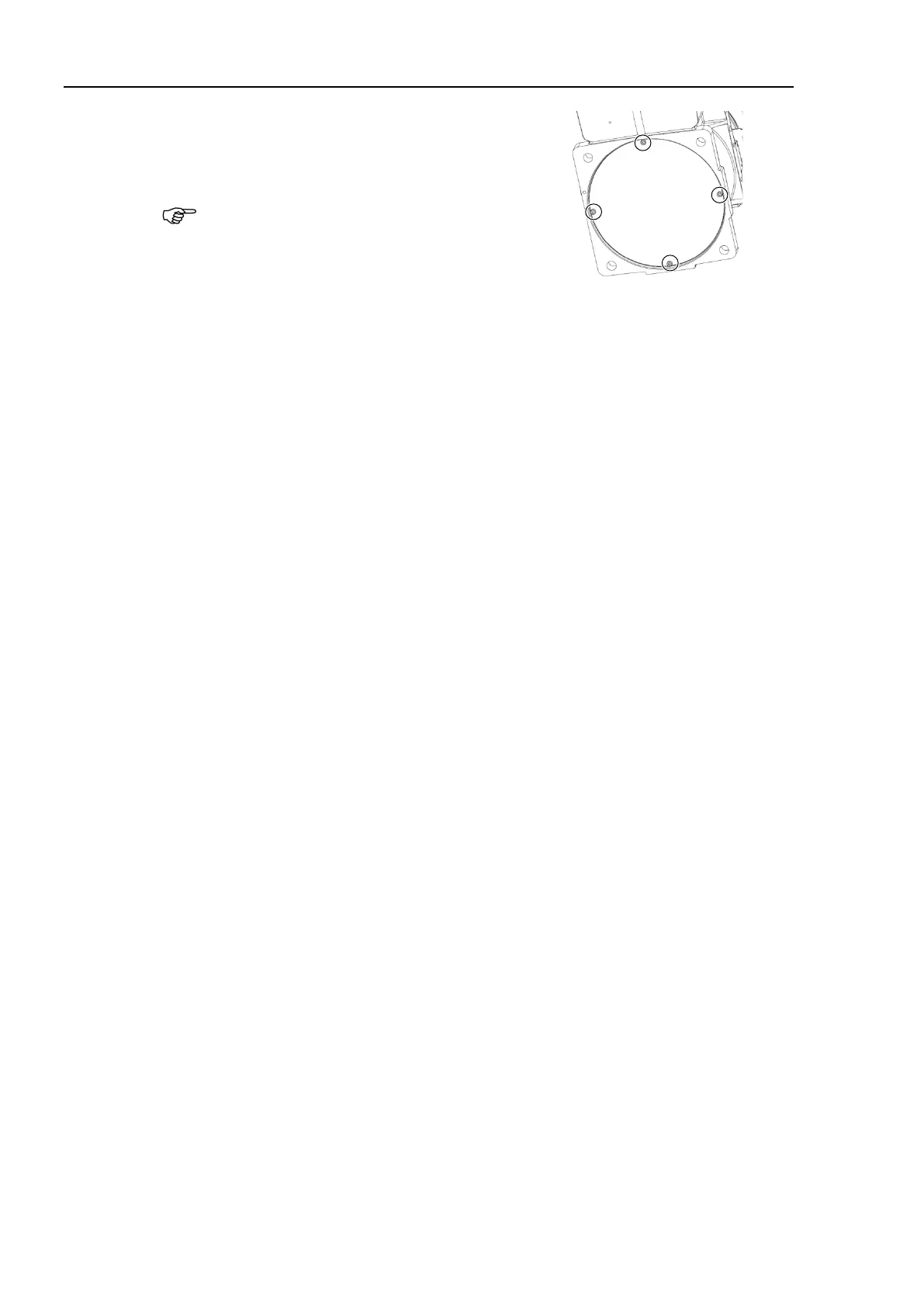

Install the base bottom plate.
Hexagon socket head cap bolts: 4-M4×8
Tightening torque: 4.0 ± 0.2 N·m
Be careful not to
catch the cables.
(6)
Install the cable unit inside the Joint #1.
For details, refer to the Removal steps (4) through (8), (56) through (64), and (66)
in Maintenance 4.3 Cable Unit (N6-A850*R): Cable direction Standard
(backward).
(7)
Install the following covers:
Base cover, Joint #1 cover, and Joint #1 inside cover
For details, refer to Maintenance 3. Covers.
(8)
Disconnect the M/C cable.
For details, refer to Maintenance 4.6. M/C Cable.
(9)
Perform calibration
for the Joint #1.
For details, refer to Maintenance 8. Calibration.

