Epson N6 Series User Manual

Maintenance 7. Boards
N6 Rev.2 351

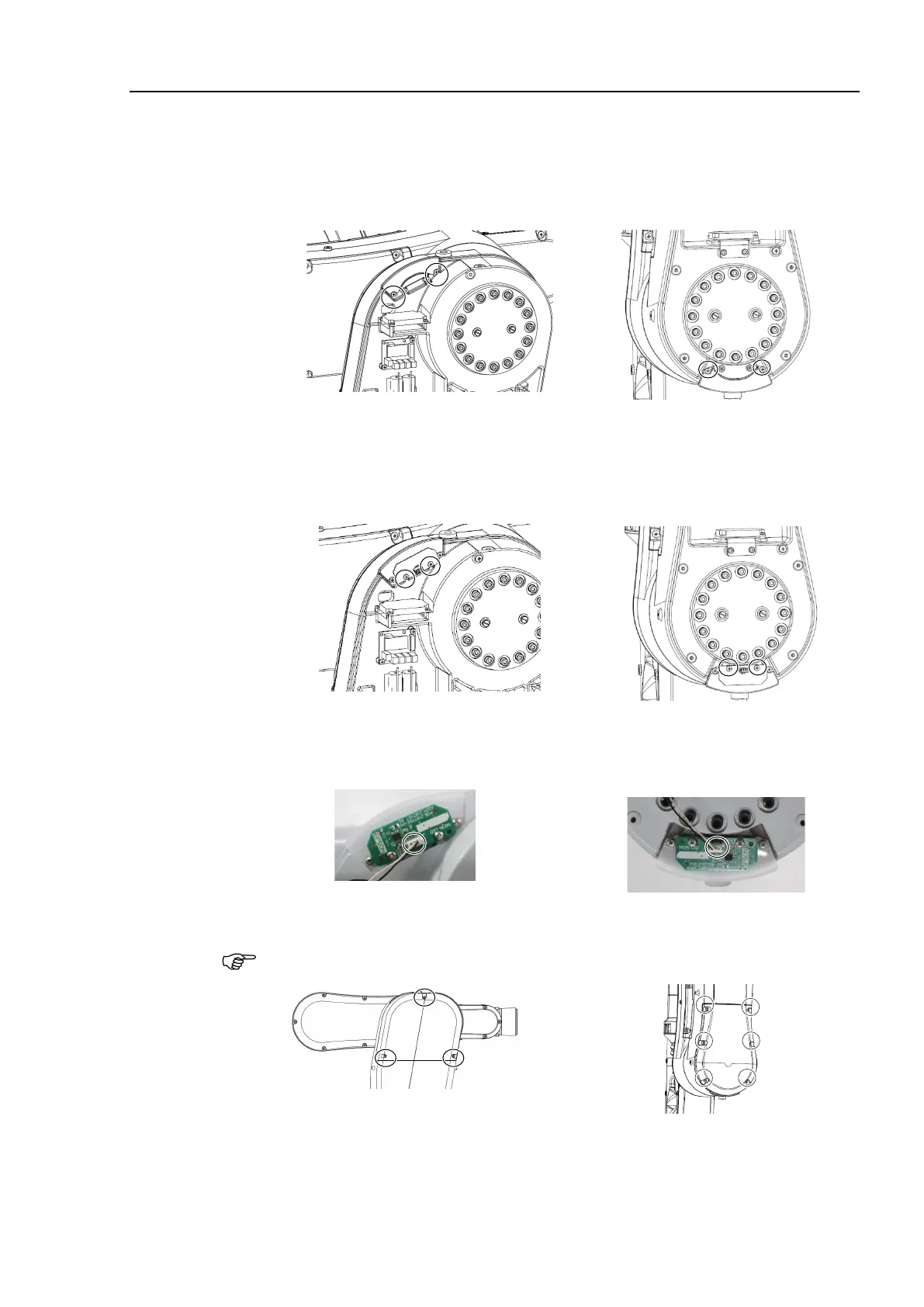

Installation
LED
Plate
(1)
Install
the LED plate to the Arm #1.
Cross recessed binding head machine screws: 2-M3×6
Tightening torque: 0.45 ± 0.05 N·m
N6-A1000**
N6-A850**R
(2)
Install
the LED board.
Cross recessed binding head machine screws: 2-M3×6
Tightening torque: 0.45 ± 0.05 N·m
N6
-A1000**
N6
-A850**R
(3)
Connect the connector to the LED board.
Connector: LED_CN1
N6-A1000**
N6-A850**R
(4)
Install the J
oint #2 outside cover.
Be careful not to get the cables caught in the cover.
N6-A1000**
N6-A850**R
Cross recessed binding head
machine screws: 3-M4×8
Tightening torque: 0.45
±
0.05 N·m
Cross recessed binding head
machine screws: 6-M4×8
Tightening torque: 0.45 ± 0.05 N·m

NOTE
