Epson N6 Series - Page 51

Setup & Operation 3. Environment and Installation
N6 Rev.2 39

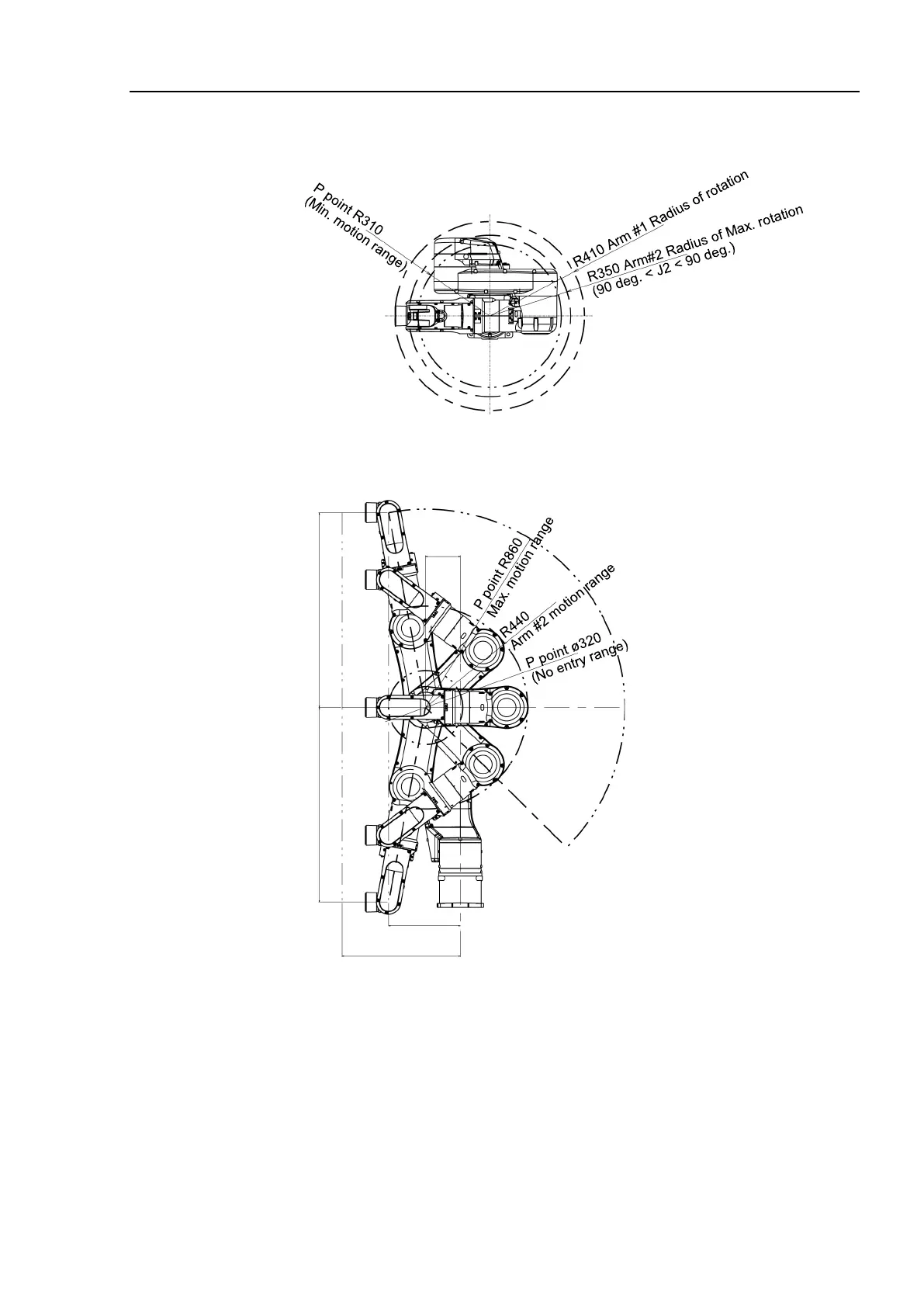

N6-A1000**: Radius of arm rotation (Basic orientation)
Motion range (CP motion)
P point* 844
150
P point* 844
P point* 310
R510
(Motion position)
* When the P point is 310mm apart from the center, upward and downward
distance in CP motion will be the maximum.
