Setup & Operation 5. Motion Range
N6 Rev.2 71

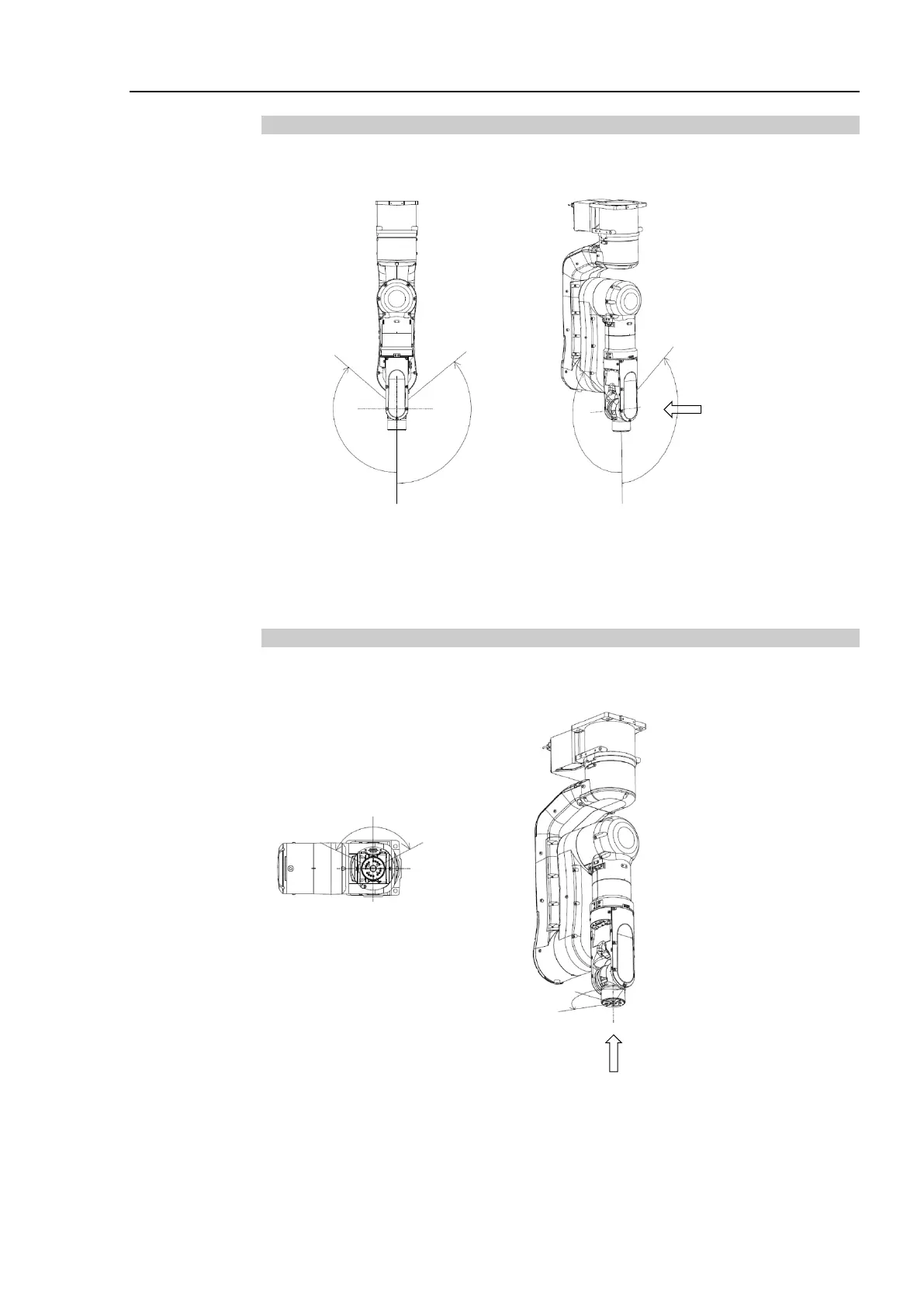

Joint #5 (N6-A850**R)
When viewing from the arrow on the right figure, pulse values in counterclockwise
direction are positive (+) and values in clockwise direction are negative (-).
Arm #5
0 pulse position
− direction
+ direction
− direction
+ direction
Angle (deg.) : ±125
Pulse (pulse) : ±3640889
Joint #6 (N6-A850**R)
When viewing from the arrow on the right figure, pulse values in counterclockwise
direction are positive (+) and values in clockwise direction are negative (-).
Arm #6
0 pulse position
+ direction
− direction
+ direction
− direction
Angle (deg.) : ±360
Pulse (pulse) : ±8773632
