Color Indicators
Eos uses color to indicate the selection state and information about channel/parameter levels.

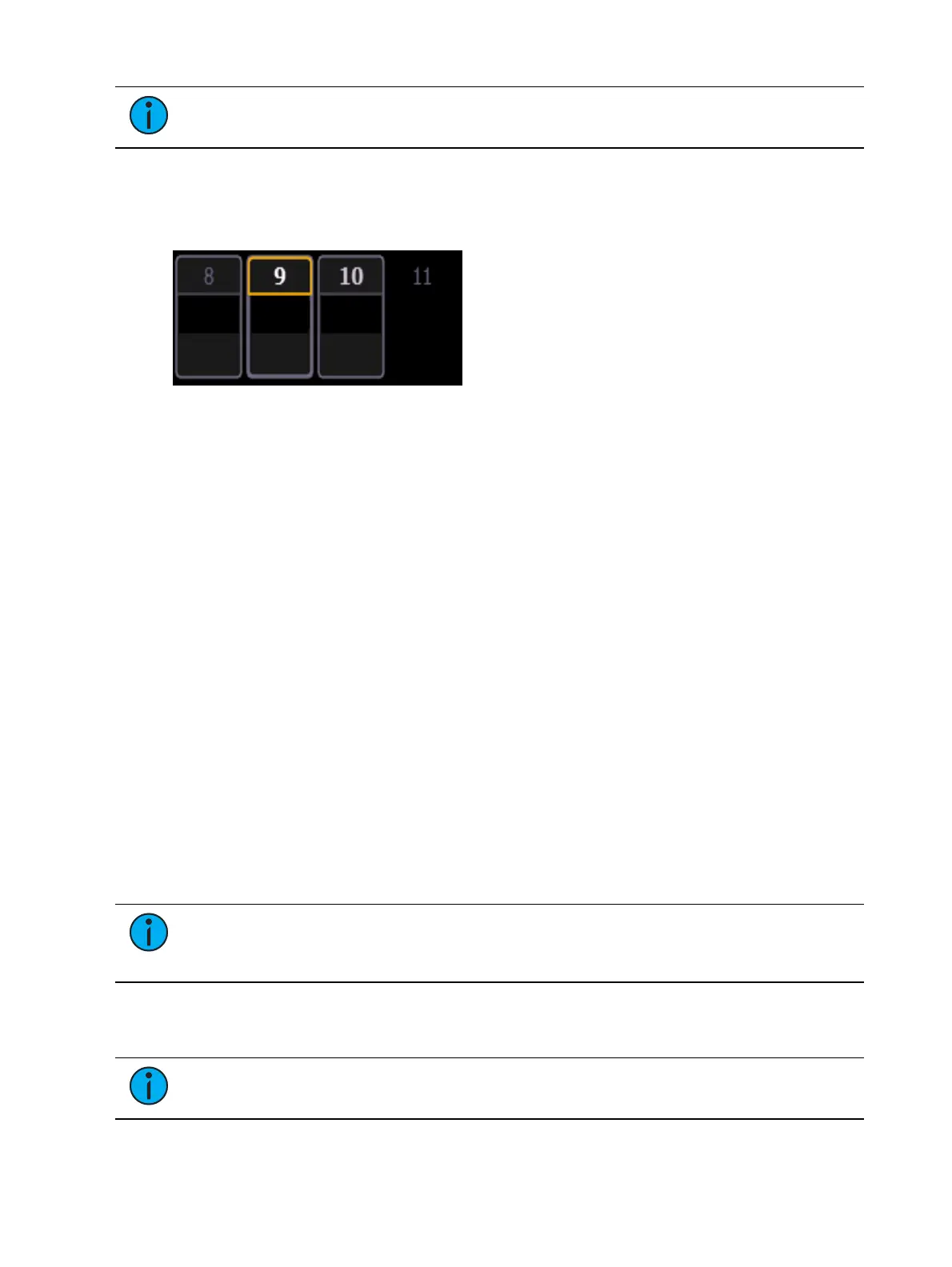

Channel Numbers/ Channel Headers
•
Gray number Unpatched channel number.
•
White number Selected channel number.
•
Bright white number Channel is parked.
•
Gold number Channel is captured.
•
Gold outline Selected channel.
•
Number with no graphic Deleted channel.
Channel/ Parameter Levels
•
Bright Red Manual Data (any data that has been set but not yet stored to an active cue
or submaster) on all consoles using the same user ID. When manual channels are used,
there will be an advisory that says "Manual Channels" in red in the upper left hand
corner of any Live display.
•
Dark Red Manual Data (any data that has been set but not yet stored to an active cue or
submaster) from other consoles that are using different user IDs.
•
Blue The intensity value is higher than in the previous cue.Non-intensity parameters
(NPs) are in blue when any move instruction has occurred. Unmarked.
•
Green The intensity value is lower than in the previous cue.Also used in reference
marking to indicate a channel is marked.
•
Magenta Value is unchanged from the previous cue (tracked).
•
White The value is blocked.
•
White with an underscore Value is auto-blocked.
•
Gray Default or the value is a null value (from either {Make Null} or a filter). When
nulled, a gray “n” appears next to the value.
•
Yellow Data set from a submaster.
•
Orange Data set from Staging Mode.
Note: When data is in transition (moving), it will appear in a lighter version of its
color. This includes up/down fades for intensity, non-intensity moves from cues,
submaster, and timed manual changes.
Text Indicators in Live/Blind
Text indicators are used to show additional channel data.
Note: Color indicators also apply to text indicators. For example, red indicates a
manual value that must be stored. See Color Indicators (above)

ETC Element 2 Specifications

General

DMX Outputs	2
Touchscreen	Yes
Networking	Ethernet
Type	Lighting Control Console
Master Faders	2
Encoders	4
Ethernet Ports	2
USB Ports	4
Video Output	DisplayPort
Power Input	100-240VAC, 50/60Hz
Power Supply	Internal
Control Channels	6144
Output	Art-Net
Display	Multi-Touch LCD
Storage	Solid State Drive (SSD)
