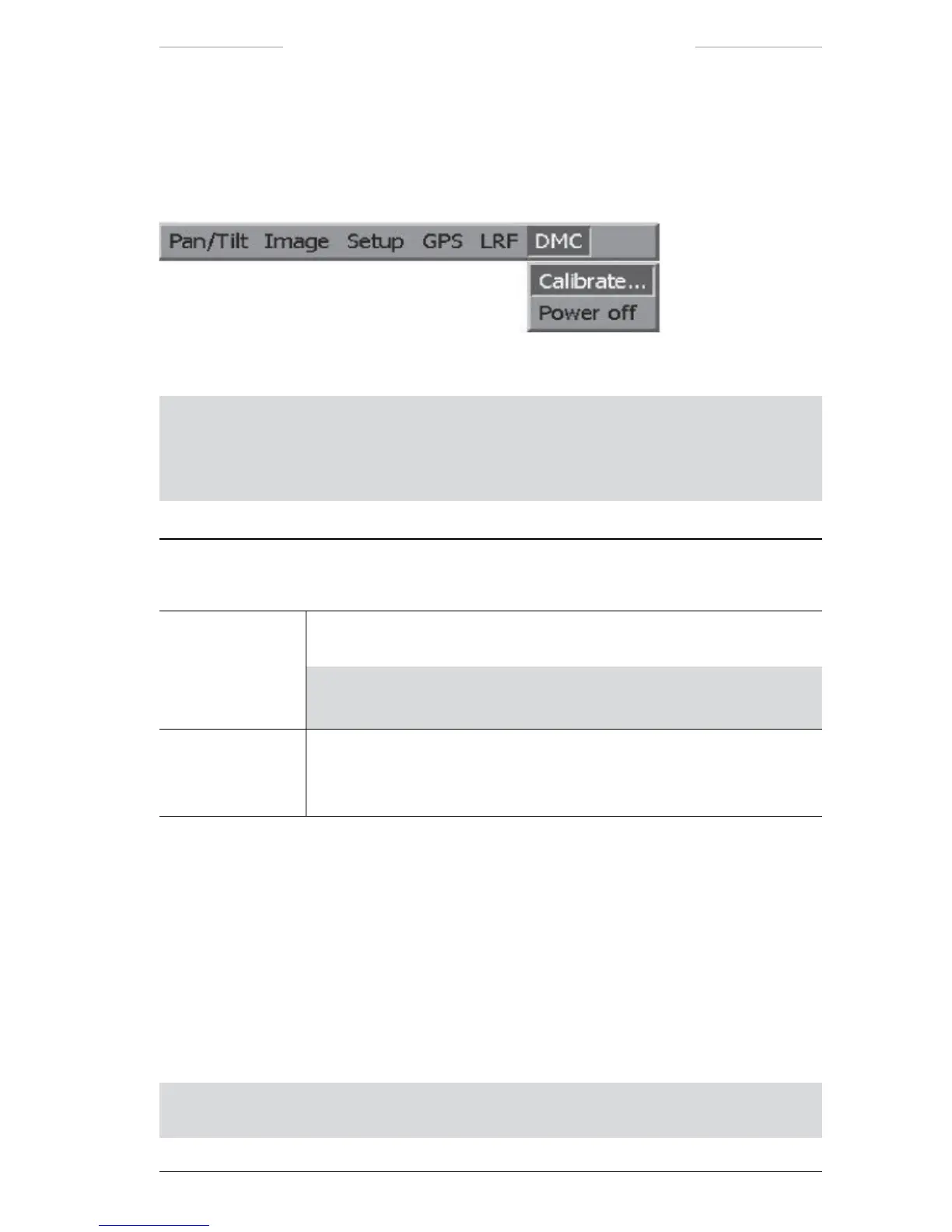

Page #91 background imageLoading...
Page #91 background image
Ranger HRC™ operator´s manual – System software
Publ. No. TM 614 006 699 Rev B – ENGLISH (EN) – Oct 30. 2008 81
7.9 DMC menu
The DMC menu is used to control the DMC (Digital Magnetic Compass)
unit.
Figure 7.35 DMC menu.
NOTE: For features with on/off alternatives, the displayed feature (for example Power off)
is the action that will be performed if the feature is selected, and not the current status.
For example,
Power off means that the power is currently On and that it will be turned Off
if the feature is selected.
LRF menu
Feature Description
Calibrate… The Calibrate feature opens the DMC Calibration mode dialog box, see
section 7.9.1.
NOTE: The Calibrate feature is disabled until the Pan/Tilt unit is
activated, which is done when the
PRK button is pressed >3 seconds.
Power on/off The Power on/off feature is used to turn the DMC unit on/off.
When the DMC unit is turned off, all menu items in the DMC menu, except
Power on, are disabled.
7.9.1 DMC Calibration mode
The DMC Calibration mode dialog box is used to calibrate the DMC unit,
in order to nd true north. The DMC unit nds the magnetic north, which
can be corrected to obtain true north. See section 10.3.)
Calibration of the DMC unit is typically done once per installation. That
is, if the system is not moved, no new calibration is needed. The DMC
Calibration procedure is described in section 10.3.1.
NOTE: The Azimuth value in the Setup – Pan/Tilt dialog box will automatically be
adjusted to correspond with the magnetic north reading of the DMC unit.
