Ranger HRC™ operator´s manual – System software
Publ. No. TM 614 006 699 Rev B – ENGLISH (EN) – Oct 30. 2008 61
Setup menu when IR is selected
Feature Description
Image…
The Image…feature opens the Setup – Image dialog box, see section 7.6.1.1.
Symbology… The Symbology…feature opens the Setup – Symbology dialog box, see
section 7.6.1.2.
Pan/tilt…
The Pan/tilt…feature opens the Setup – Pan/tilt dialog box, see section 7.6.1.3.
IR menu The IR menu feature is used to open the menu system of the IR Camera, see
chapter 8.
To exit the IR Camera menu system, press the CANCEL button. If not in use
for a while, the IR Camera menu system is automatically exited.
Local adapt… The Local adapt…feature opens the Setup – Local adapt dialog box, see
section 7.6.1.4.
Date & time… The Date & time…feature opens the Setup – Date & time dialog box, see
section 7.6.1.5.
Maintenance… The Maintenance…feature opens the Setup – Maintenance dialog box, see
section 7.6.1.6.
System info… The System info…feature opens the System information dialog box, see
section 7.6.1.7.
7.6.1.1 Setup – Image
The Setup – Image dialog box is used control the appearance of the IR
image.

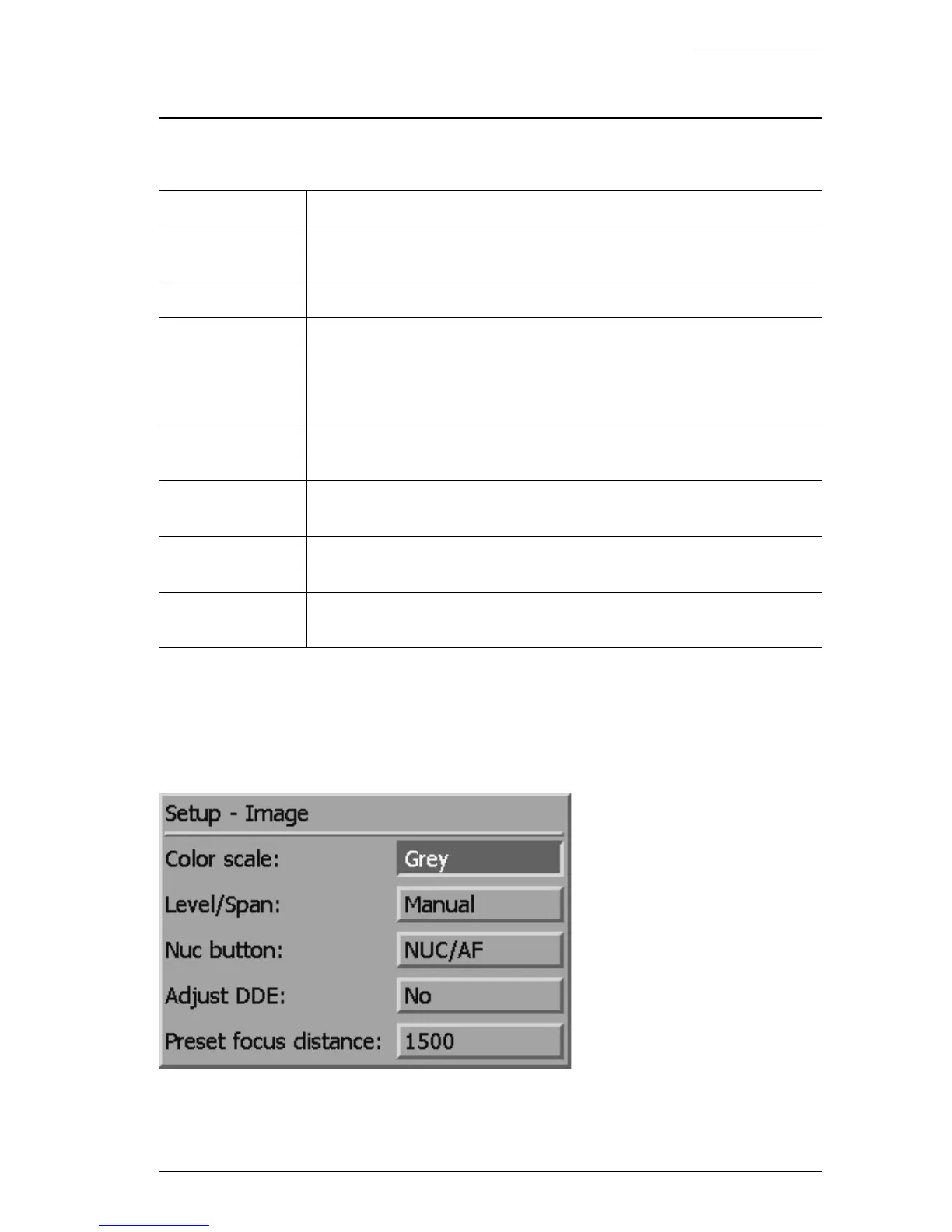

Figure 7.17 Setup – Image dialog box when IR is selected.
