[ 5 ] Real-time trace
When continuously observing the running state of inverters while the sampling time is fixed at 200 ms, up to 4
analog channels and up to 8 digital channels are available (up to 8 channels in total).
(Maximum waveform amount: 15360 sample/channel)

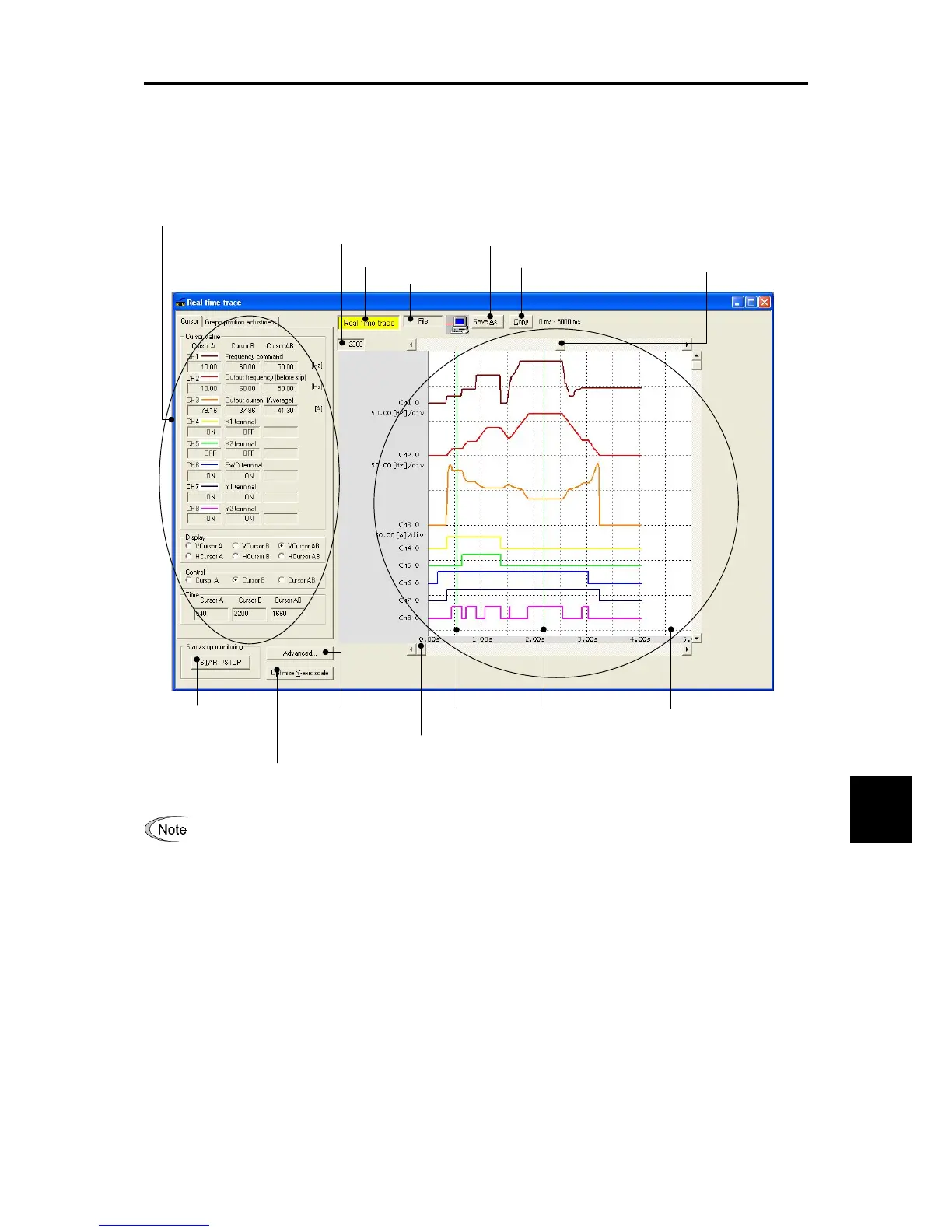

Type of trace
• Cursor
• Adjustment of graph
positions
Cursor position
Save
data
Cursor scroll bar
Tracing type
Tracing status
Hardcopy of waveform monitor
START/STOP
the historical trace
Advanced
waveform settings
for each
channel
Cursor A
Cursor B
Monitor window
Scope scroll Bar
Optimize Y-axis origin of each channel
• The station No can not be changed while tracing waveforms real time.
•
The detailed waveform can not be changed while tracing waveforms real time.
•
Change the real time trace window to change the size of monitor window.
•
The scrolling and cursor moving are unavailable in the waveform monitoring window while tracing
waveforms real time.
