11.25 PG interface card (OPC-E2-PG3)
11-77
SELECTING PERIPHERAL EQUIPMENT
Chap 11

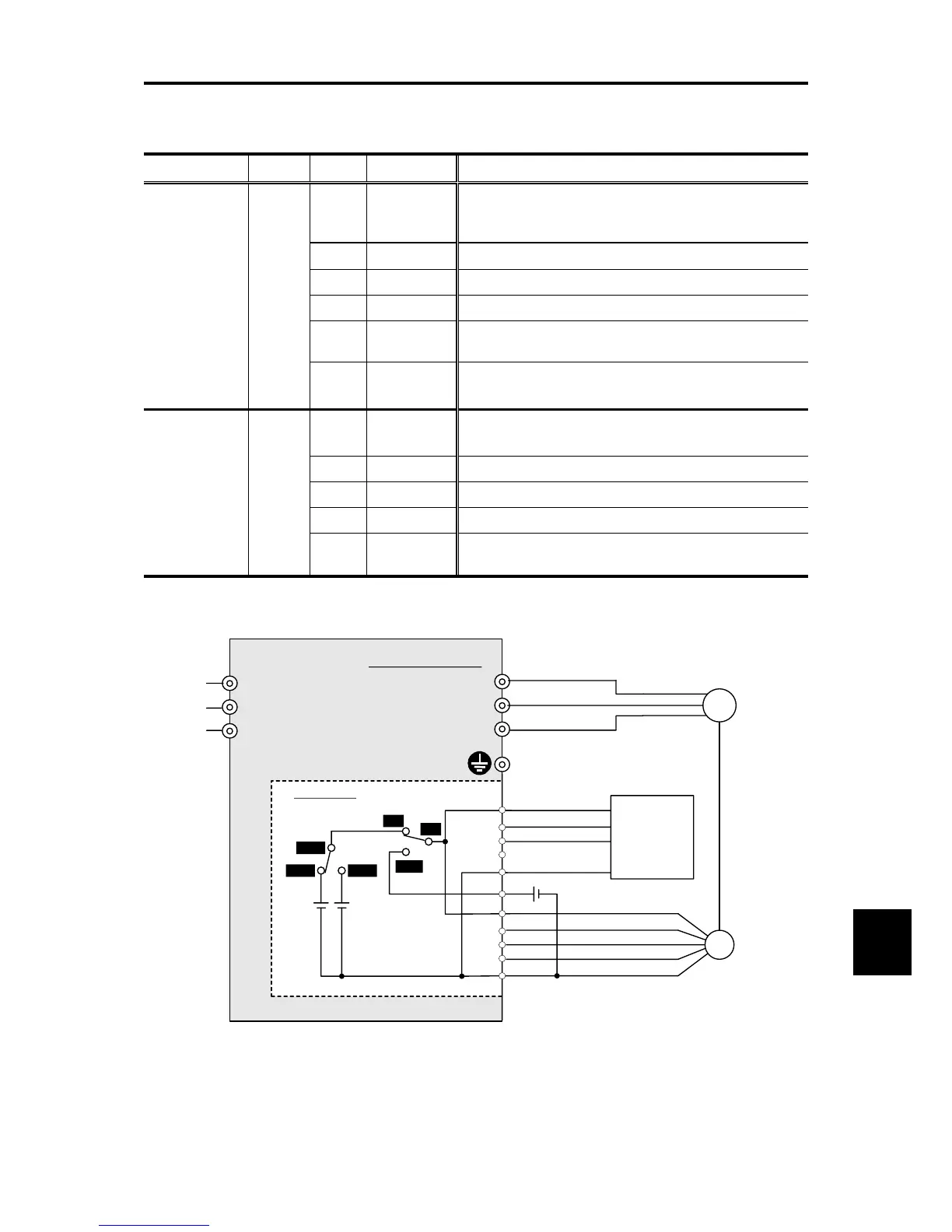

11.25.4 Terminal functions
Table 11.25-4
Function Terminal Symbol Name Specifications
Feedback side
(PG interface)
TERM4
PO
Power output
to PG
The external device power supply output.
12V/15V power output is possible.
YA A-Phase Input terminal for A-phase pulse train feedback from PG
YB B-Phase Input terminal for B-phase pulse train feedback from PG
YZ Z-Phase Input terminal for Z-phase pulse train feedback from PG
CM common
Power supply common terminal of PG / pulse train / digital
input.It is insulated from the terminal “11”.
PI
External
power input
Power input terminal from the external device for PG.
+12Vdc ±10% or, +15Vdc ±10%
Command side
(pulse train
interface)
TERM5
PO Power output
The external device power supply output.
12V/15V power output is possible.
XA A-Phase Input terminal for A-phase command pulse train
XB B-Phase Input terminal for B-phase command pulse train
XZ - Not used
CM common
Power supply common terminal of PG / pulse train / digital
input.It is insulated from the terminal “11”.
11.25.5 Connection diagram
OPC-E2-PG3
FRN-E2S/E2E
PO
XA
XB
XZ
CM
U
V
W
M
L1/R
L2/S
L3/T
G
PO
YA
YB
YZ
PI
CM
PG
EXT
INT
J1
Pulse train
generator
or
PG
12V
80mA
max
15V
60mA
max
SW8
12V 15V
12Vdc ±10% or�
15Vdc±10%
Figure 11.25-1
