11.28 Multi functional keypad (TP-A1-E2C)
11-83
SELECTING PERIPHERAL EQUIPMENT
Chap 11
11.28 Multi functional keypad (TP-A1-E2C)
Replacing the standard keypad with the multi-function keypad enables setting and checking of function code data,
and monitoring of the inverter running status, on the LCD monitor.
TP-A1-E2C cannot be directly mounted on FRENIC-Ace. It can be connected only through a cable.
Specifications
Items Specifications Remarks
Dimensions Refer to the figures below
Mass 120g
Available languages Japanese, English, Chinese
It is due to correspond to
user-customized language.
Copy function
Possible to memorize or copy three function data
sets.
Applicable inverter
FRENIC-HVAC/AQUA series
FRENIC-Ace series
Do not connect to FVR-E11S
series otherwise Keypad or
inverter may be damaged.
Number of connection One inverter to one Multi-function keypad
Connection cable
Conformed to ANSI/TIA/EIA568A Category 5
(For 10BASE-T/100BASE-TX straight connection)
Extension cable (CB-5S)
Extension cable length 20m or less
Connector RJ-45 connector

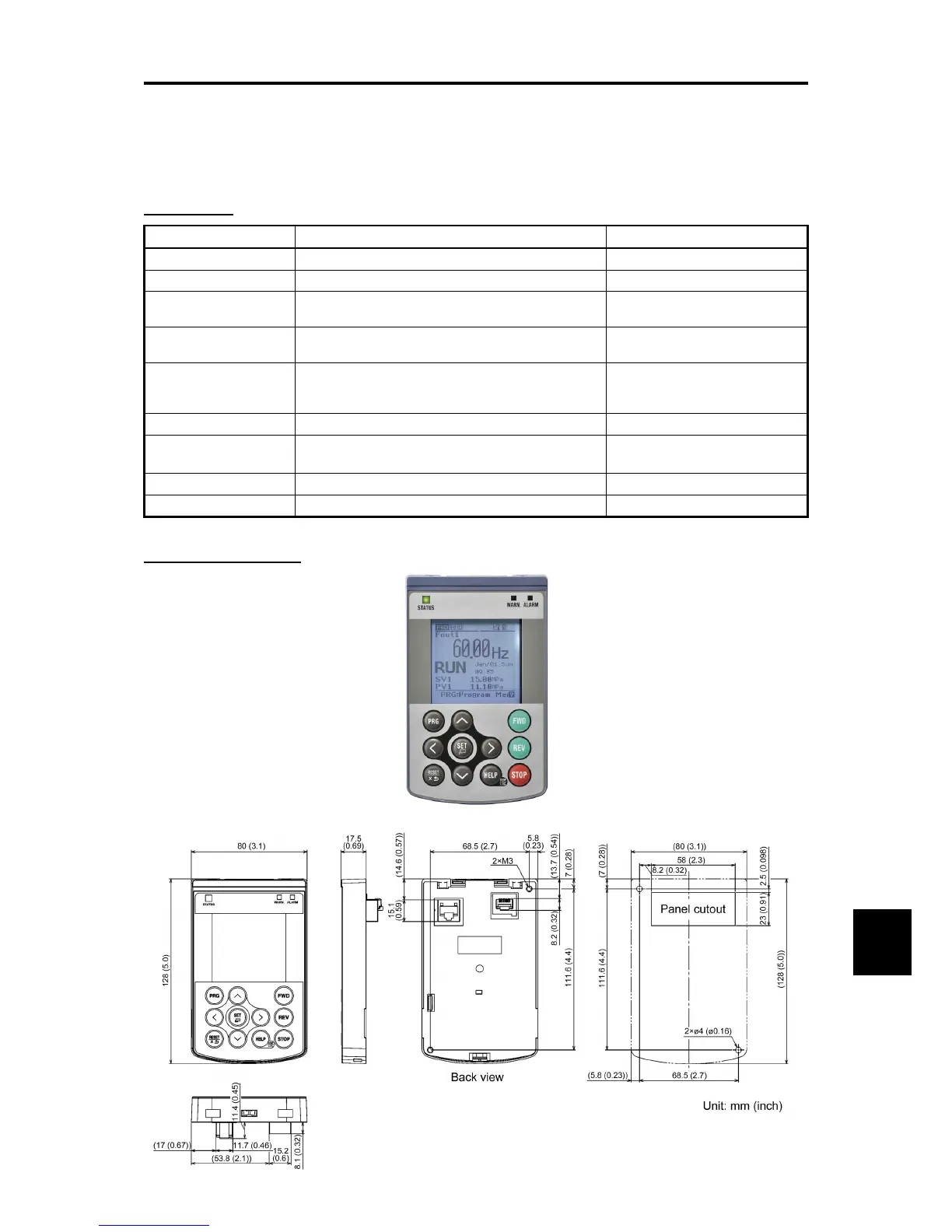

External view, dimension
