11.7 Filtering Capacitors Suppressing AM Radio Band Noises
11-18
11.7 Filtering Capacitors Suppressing AM Radio Band Noises
These capacitors are effective to suppress AM radio band (less than 1 MHz) noises. Using them with Zero-phase
reactors upgrades capability.
Applicable models are NFM25M315KPD1 for 200 V class series inverters and NFM60M315KPD for 400 V class.
Use one of them regardless of the inverter capacity. Figure 11.7-1 shows their external dimensions. These
products are available from Fuji Electric Technica Co., Ltd.
* Do not use the filtering capacitor in the inverter secondary (output) line.
NFM25M315KPD1 NFM60M315KPD

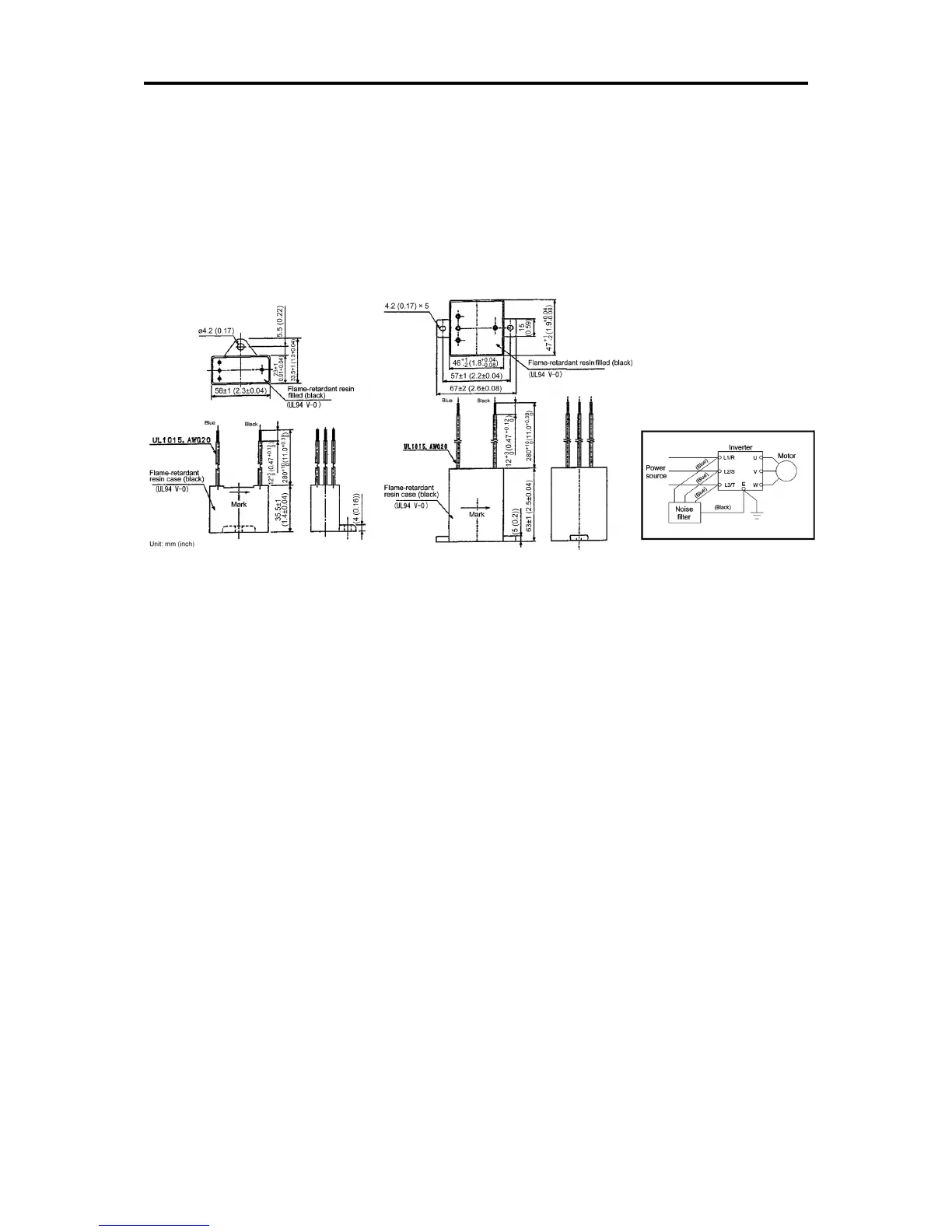

Figure 11.7-1 Filtering Capacitors Dimensions
