13.1 Standard Model
(FRN0069E2S-2/ FRN0044E2S-4/ FRN0011E2S-7 or below)
13-1
EXTERNAL DIMENSIONS
Chap 13
13.1 Standard Model
(FRN0069E2S-2

/ FRN0044E2S-4

/ FRN0011E2S-7

or below)

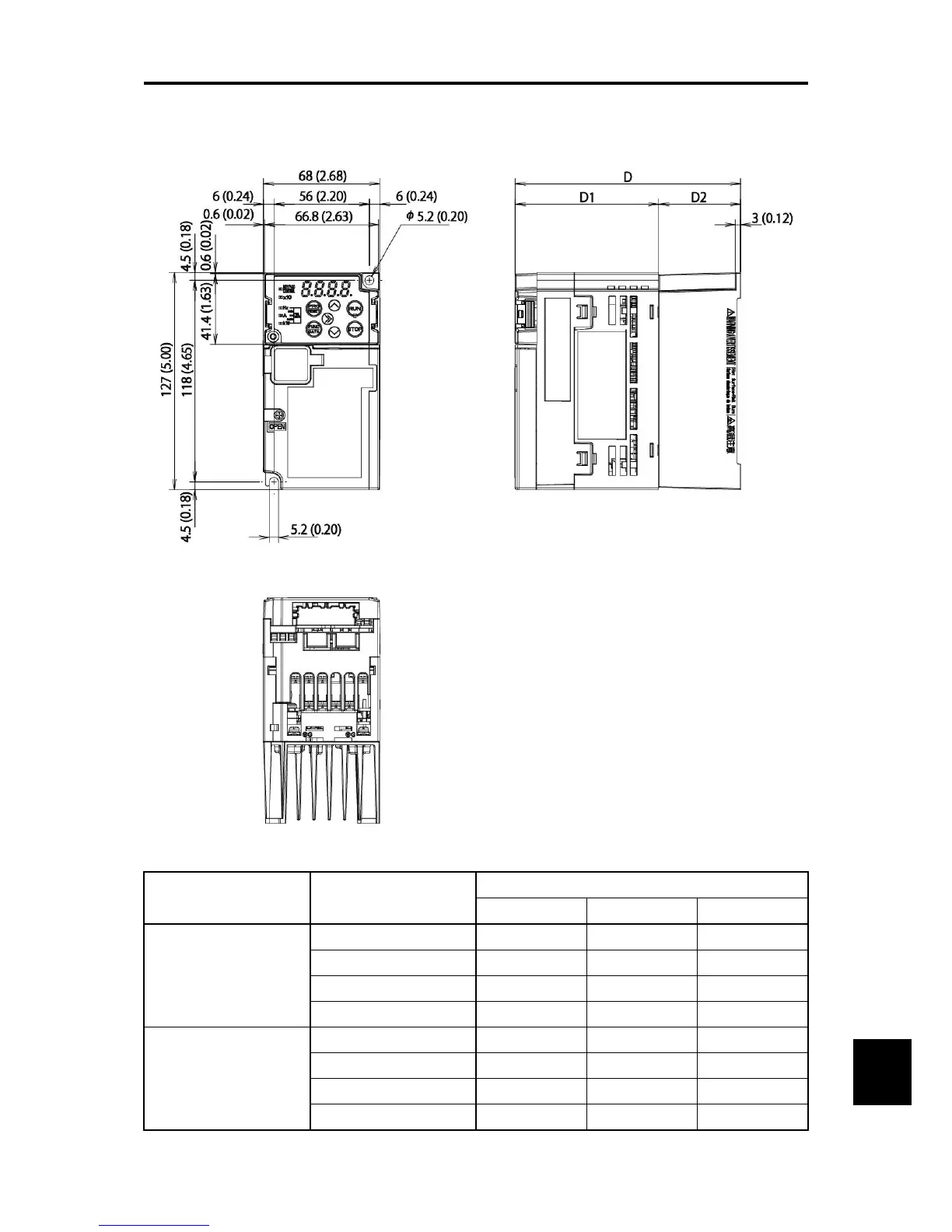

Figure 13.1-1
Power supply voltage Inverter type
Dimension [mm (inch)]
D D1 D2
Three-phase 200V
FRN0001E2S-2 85 (3.35) 77 (3.03) 8 (0.31)
FRN0002E2S-2 85 (3.35) 77 (3.03) 8 (0.31)
FRN0004E2S-2 100 (3.94) 77 (3.03) 23 (0.91)
FRN0006E2S-2 132 (5.20) 84 (3.31) 48 (1.89)
Single-phase 200V
FRN0001E2S-7 85 (3.35) 77 (3.03) 8 (0.31)
FRN0002E2S-7 85 (3.35) 77 (3.03) 8 (0.31)
FRN0003E2S-7 107 (4.21) 84 (3.31) 23 (0.91)
FRN0005E2S-7 152 (5.98) 104 (4.09) 48 (1.89)
A box () in the above table replaces GA, GB or C depending on the model.
[Unit: mm (inch)]
