13.1 Standard Model
(FRN0069E2S-2/ FRN0044E2S-4/ FRN0011E2S-7 or below)
13-4
* The figure given in the lower right-hand corner of each set of drawings shows the dimension of panel cutting
required for external cooling. To employ external cooling for inverters FRN0030E2S-2 to FRN0115E2■-2 and
FRN0022E2S-4 to FRN0072E2■-4, the optional mounting adapter for external cooling is necessary. For the
external dimensions of the mounting adapter, refer to Chapter 11, Section 11.15.

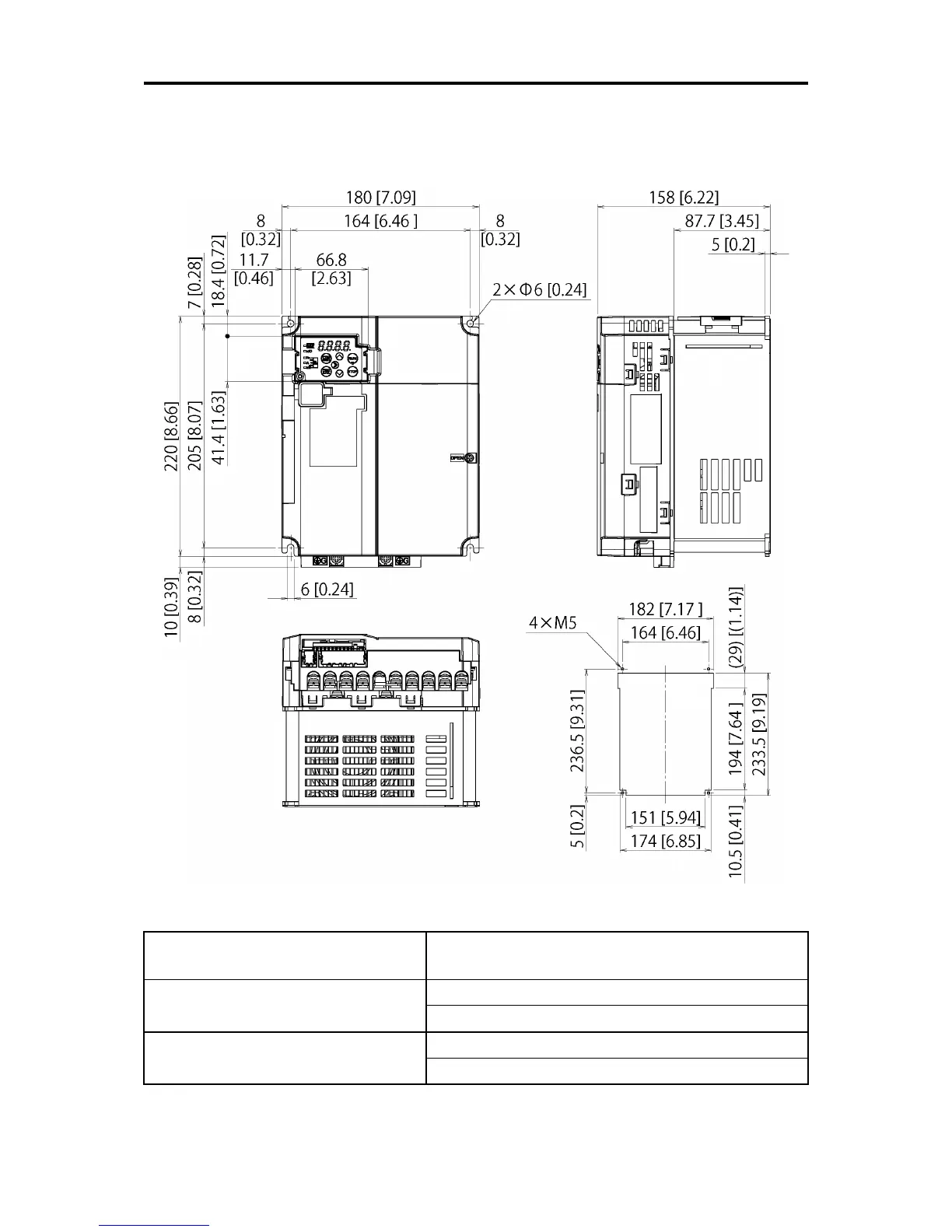

Figure 13.1-4
Power supply voltage Inverter type
Three-phase 200V
FRN0030E2S-2
FRN0040E2S-2
Three-phase 400V
FRN0022E2S-4
FRN0029E2S-4
A box () in the above table replaces GA, GB or C depending on the model.
