Installing the PSU upgrade kit

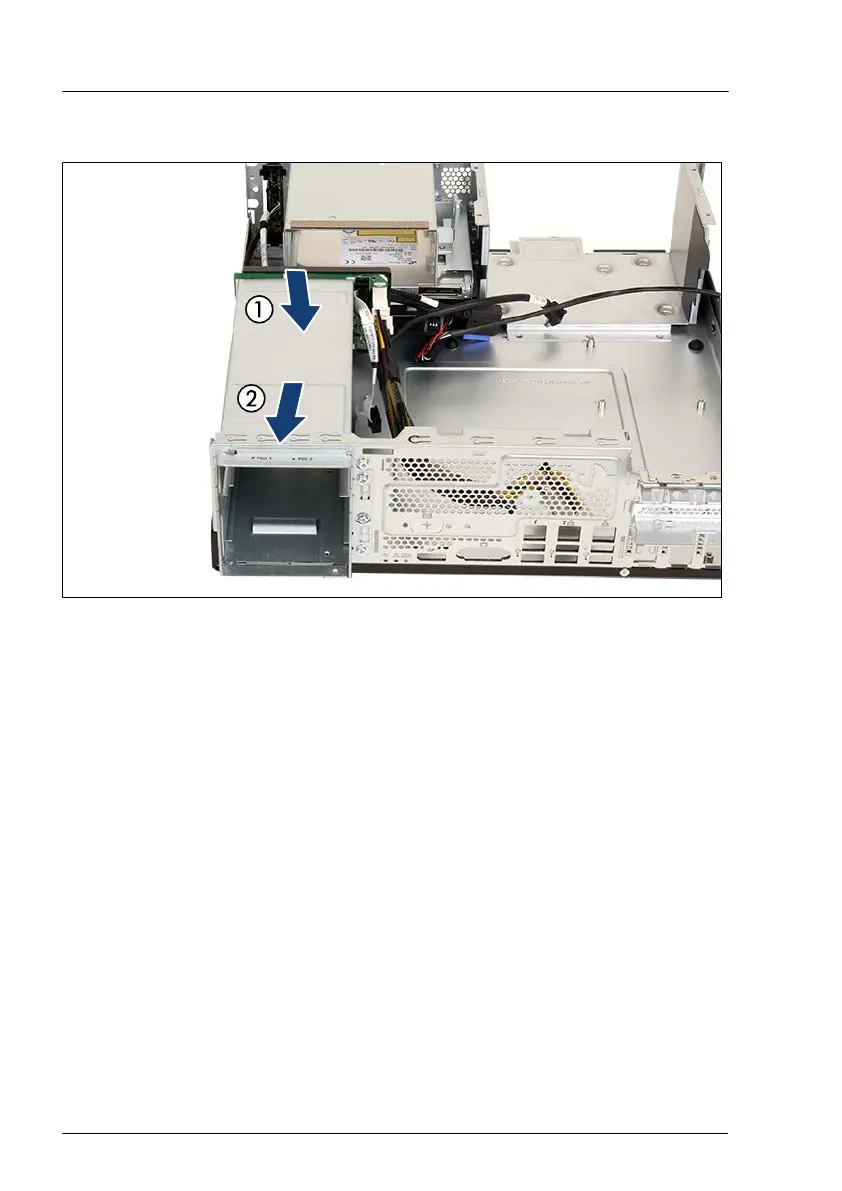

Figure 37: Installing the PSU cage (A)
▶
Take note of the two hooks, see circles in
Figure 32.
▶
Insert the PSU cage into the chassis (1).
▶
Ensure that the hooks on the chassis engage with the notches on the lower
surface of the PSU cage.
▶
Slide the new PSU cage towards the rear of the chassis (2).
Power supply unit (PSU)
112 Upgrade and Maintenance Manual TX1320 M5
