Fujitsu PRIMERGY TX1320 M5

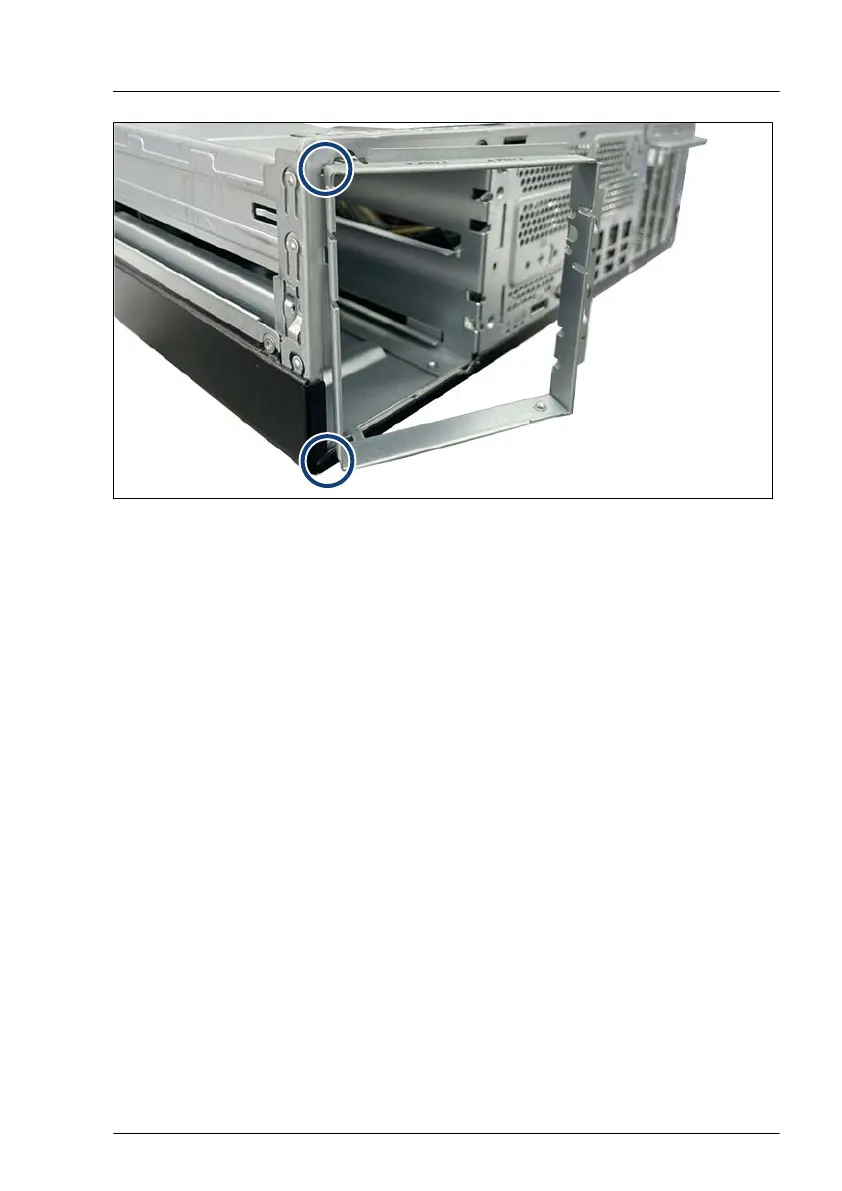

Figure 38: Installing the redundant PSU frame
▶
Install the redundant PSU frame at a slight angle .
▶
Ensure that the hooks engage in the recesses (see circles).
Power supply unit (PSU)
TX1320 M5 Upgrade and Maintenance Manual 113
