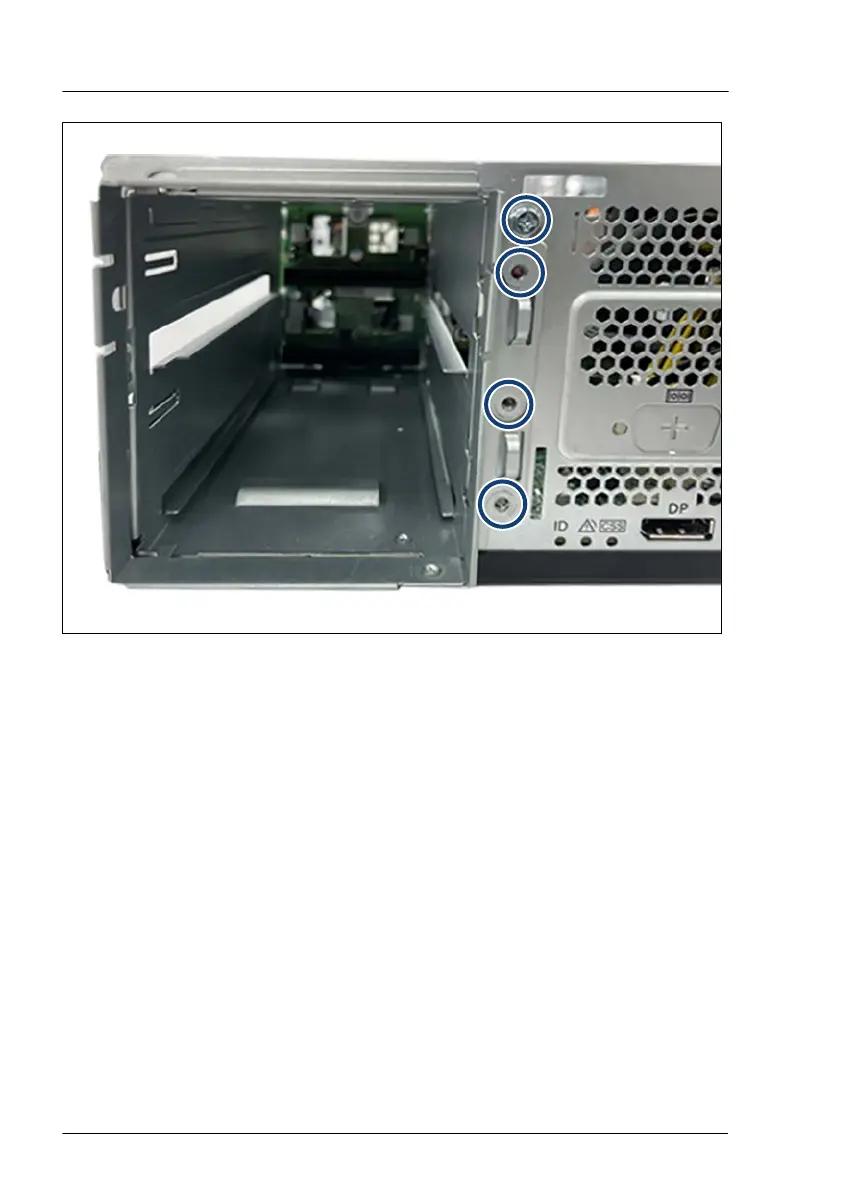

Figure 39: Fastening the redundant PSU frame
▶
Fasten the redundant PSU frame with the four screws (see circles).
▶
Install the power distribution board, see "Installing the new power
distribution board" on page
128
.
Connecting the power distribution board
▶
Connect the cables to the power distribution board, see Figure 56.
Power supply unit (PSU)
114 Upgrade and Maintenance Manual TX1320 M5
