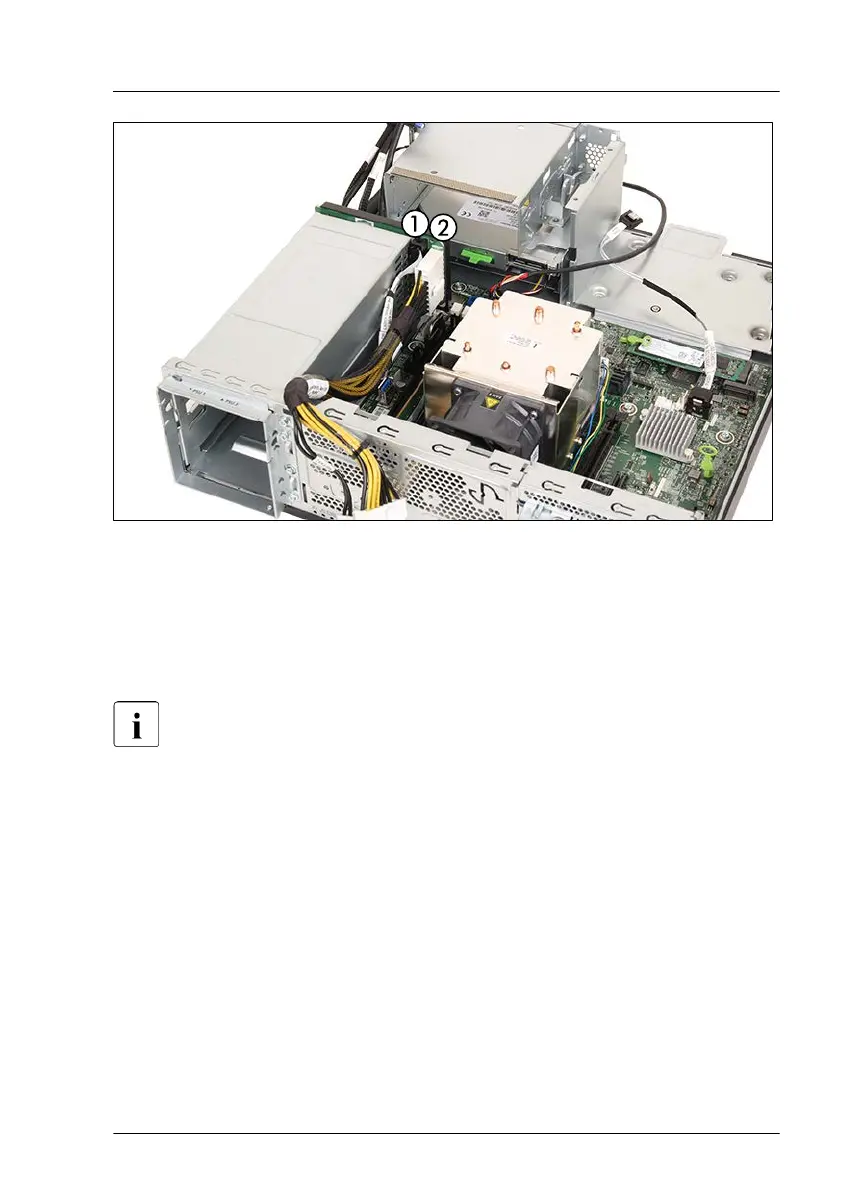

Figure 56: Connecting the power distribution board
▶
Connect the cables to the power distribution board:
1 PSU signal cable
2 PSU power cable
For the cable plan, see "Appendix B" on page 375
.
▶
Install the PSUs, see "Installing a hot-plug PSU" on page 1
16.
Concluding steps
▶
If applicable, install the RDX drive, see "Installing the RDX drive" on
page 257.
▶
If applicable, install the ODD, see "Installing the ODD" on page 246.
▶
"Reassembling" on page 54.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Resuming BitLocker functionality" on page 91.
Power supply unit (PSU)
TX1320 M5 Upgrade and Maintenance Manual 131
