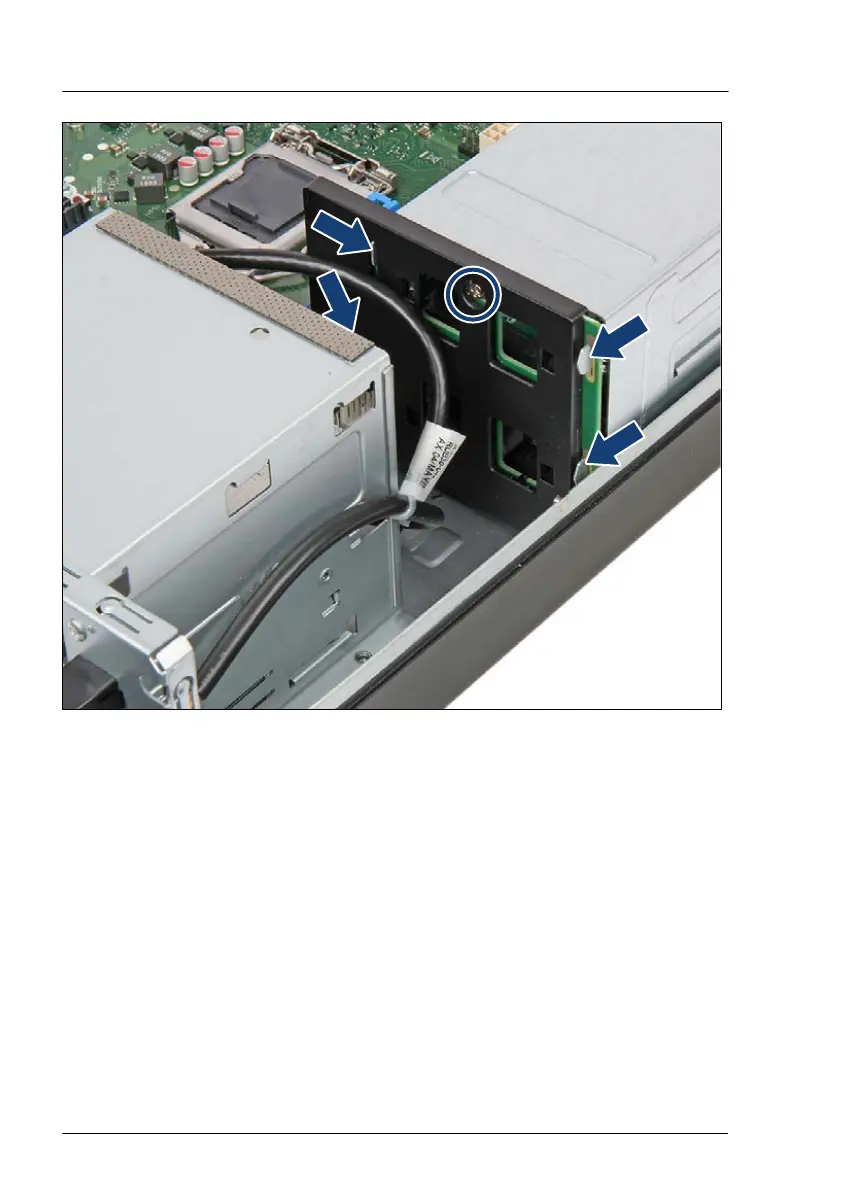

Figure 55: Installing the power distribution board
▶
Hook the power distribution board in the hooks at both sides of the PSU
cage.
▶
Fasten the power distribution board through the empty drive bay with one
screw (see circle).
Power supply unit (PSU)
