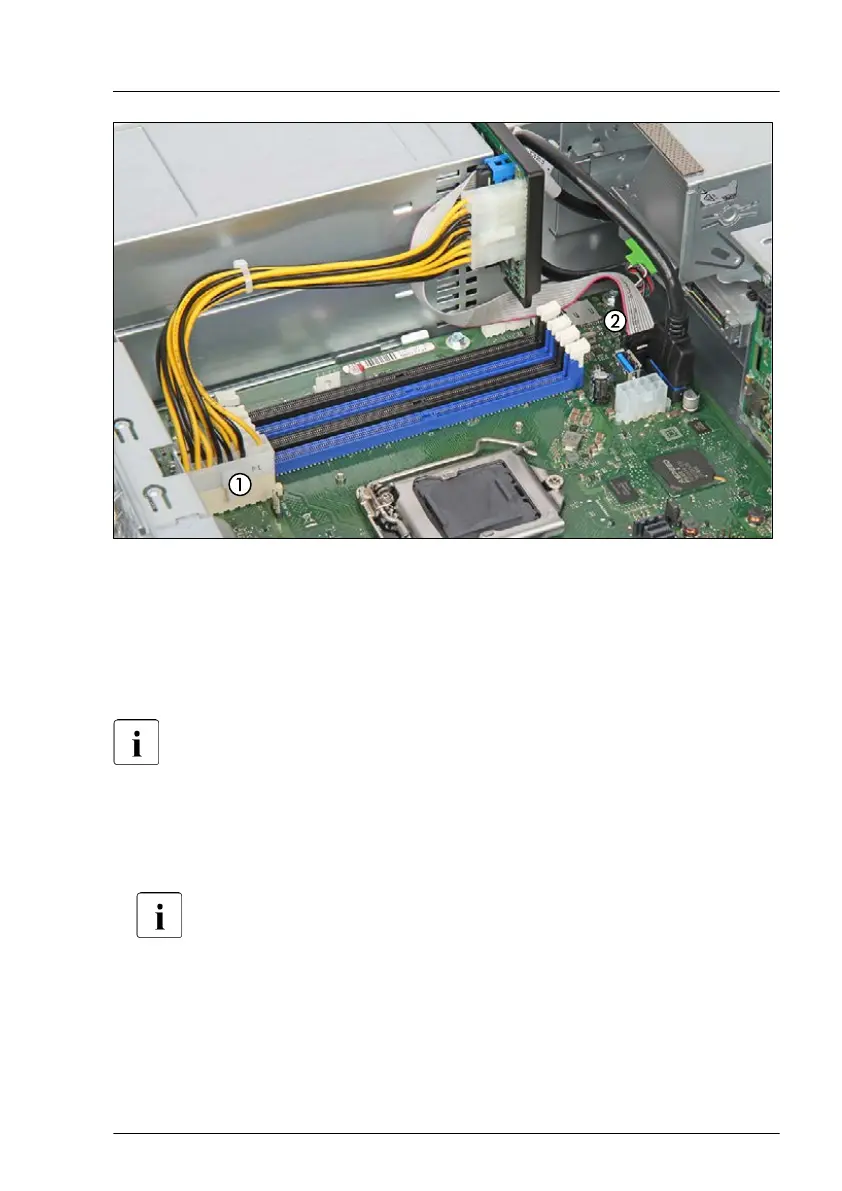

Figure 40: Connecting cables
▶
Connect the cables to the system board:
1 PSU power cable to connector "PWR1"
2 PSU signal cable to connector "P30"
For the cable plan, see "Appendix B" on page 375
.
Installing a hot-plug PSU and a PSU dummy cover
▶
Install the hot-plug PSU(s), see "Installing the PSU" on page 1
19.
The PSU must be installed in the first bay. The dummy cover must be
installed in the second bay
.
▶
Install the dummy cover, see
"Installing the PSU dummy cover" on
page 122.
Power supply unit (PSU)
TX1320 M5 Upgrade and Maintenance Manual 115
