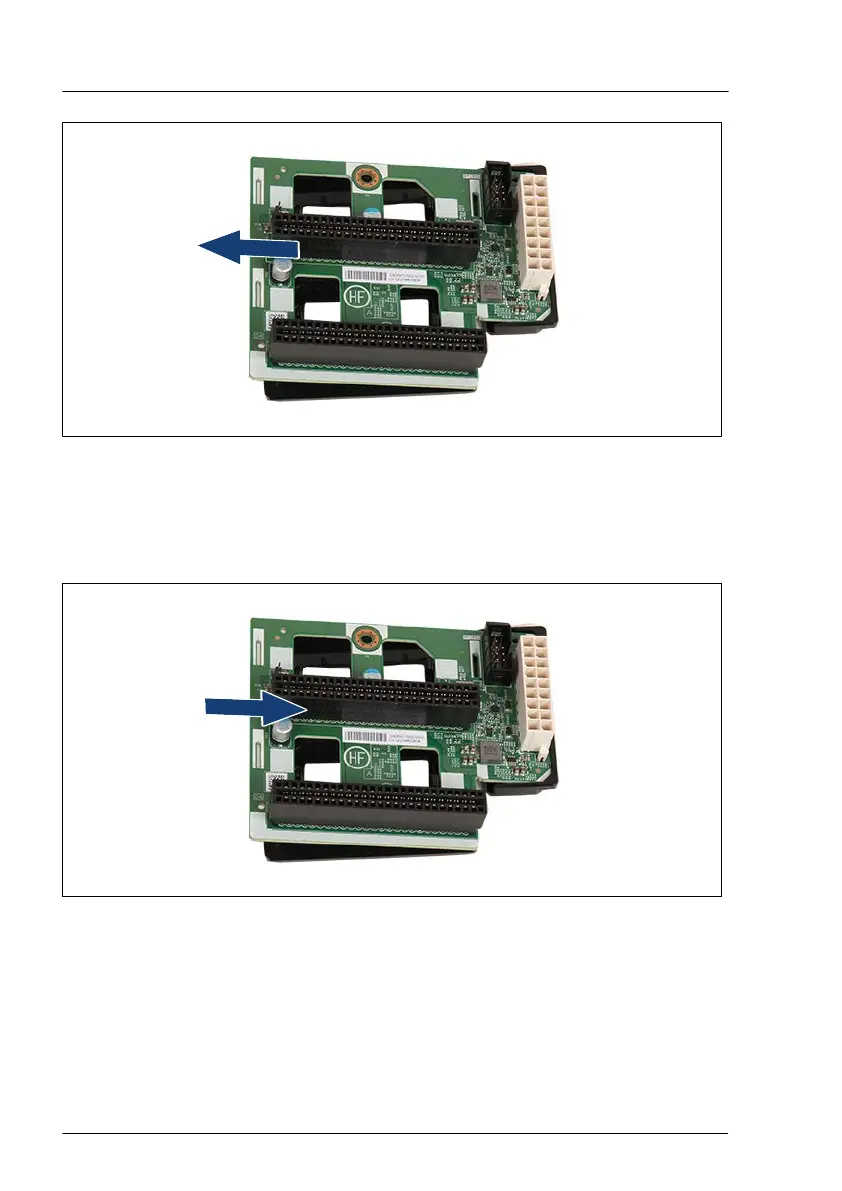

Figure 51: Removing the power distribution board (B)
â–¶
Remove the power distribution board from the holder
.
Installing the new power distribution board
Figure 52: Inserting the power distribution board (A)
â–¶
Insert the power distribution board at a slight angle into the holder
.
Power supply unit (PSU)
128
Upgrade and Maintenance Manual
TX1320 M5
127
129
