Remove the screw (see circle).
For easier access to the screw of the power distribution board, it
could be helpful to remove the accessible drives, see "Removing the
ODD" on page 252 and "Removing the RDX drive" on page 261.

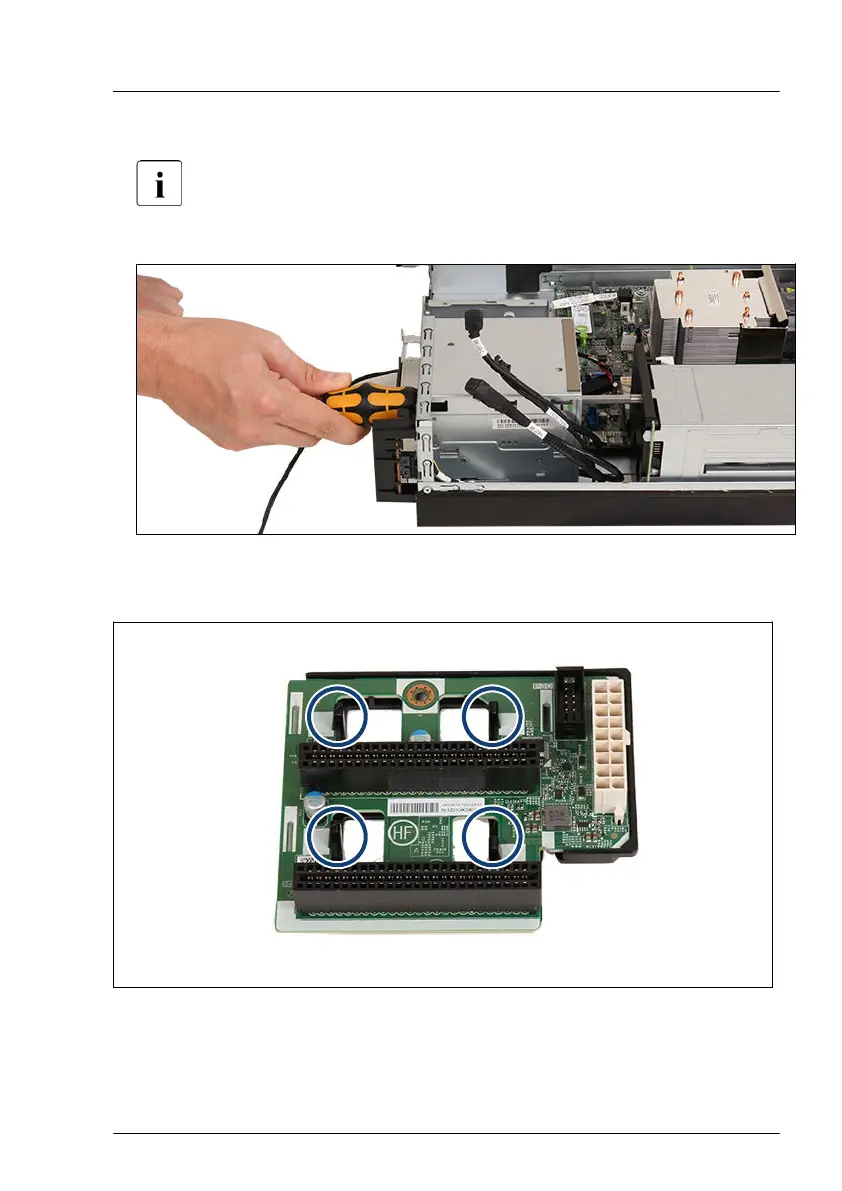

Figure 49: Access to the screw of the power distribution board
▶
Remove the power distribution board upwards.
Figure 50: Removing the power distribution board (A)
▶
Remove the power distribution board from the four hooks of the holder (see
circles).
Power supply unit (PSU)
TX1320 M5 Upgrade and Maintenance Manual 127
