Removing a 3.5-inch non hot-plug HDD

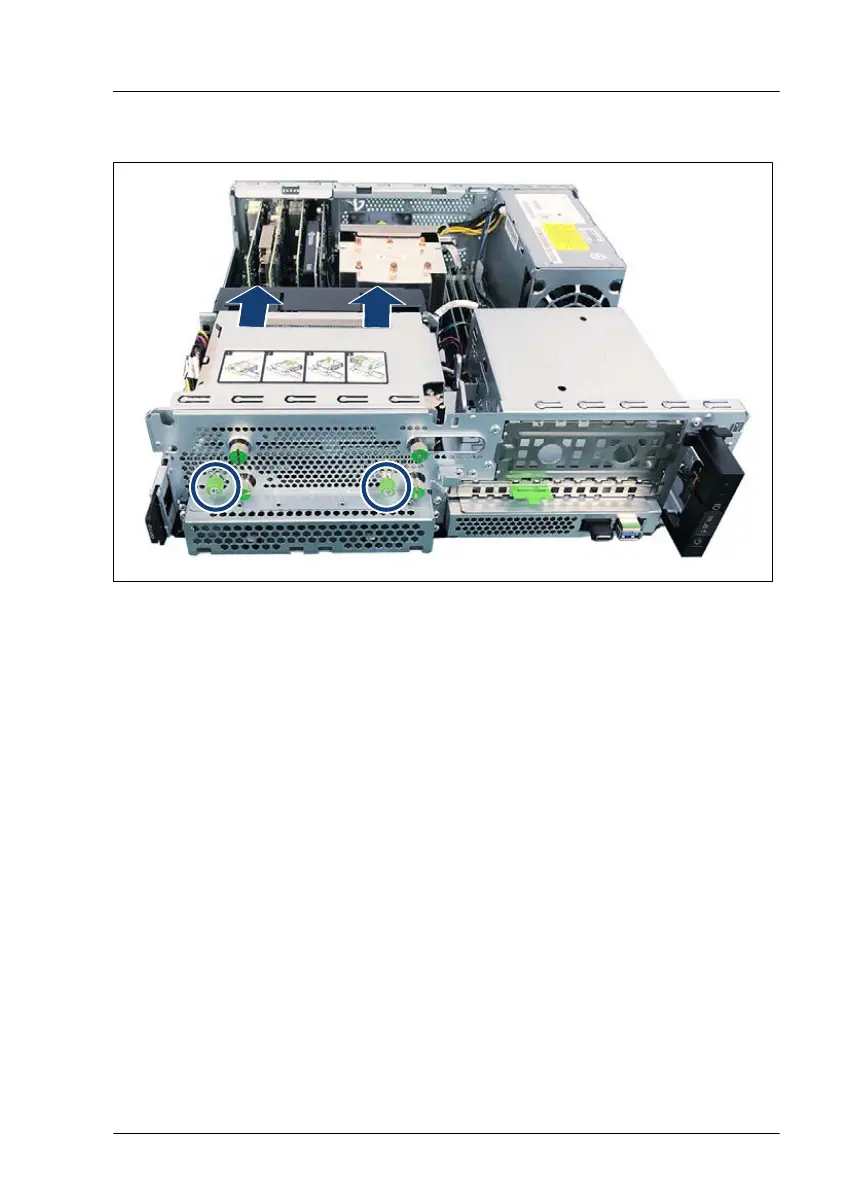

Figure 69: Removing the HDD cage (A)
▶
Loosen the two knurled screws from the HDD cage (see circles).
▶
Slide the HDD cage in the direction of the arrows.
Hard disk drive (HDD) / solid state drive (SSD)
TX1320 M5
Upgrade and Maintenance Manual
145
144
146
