Breakout and recess in the HDD fan module

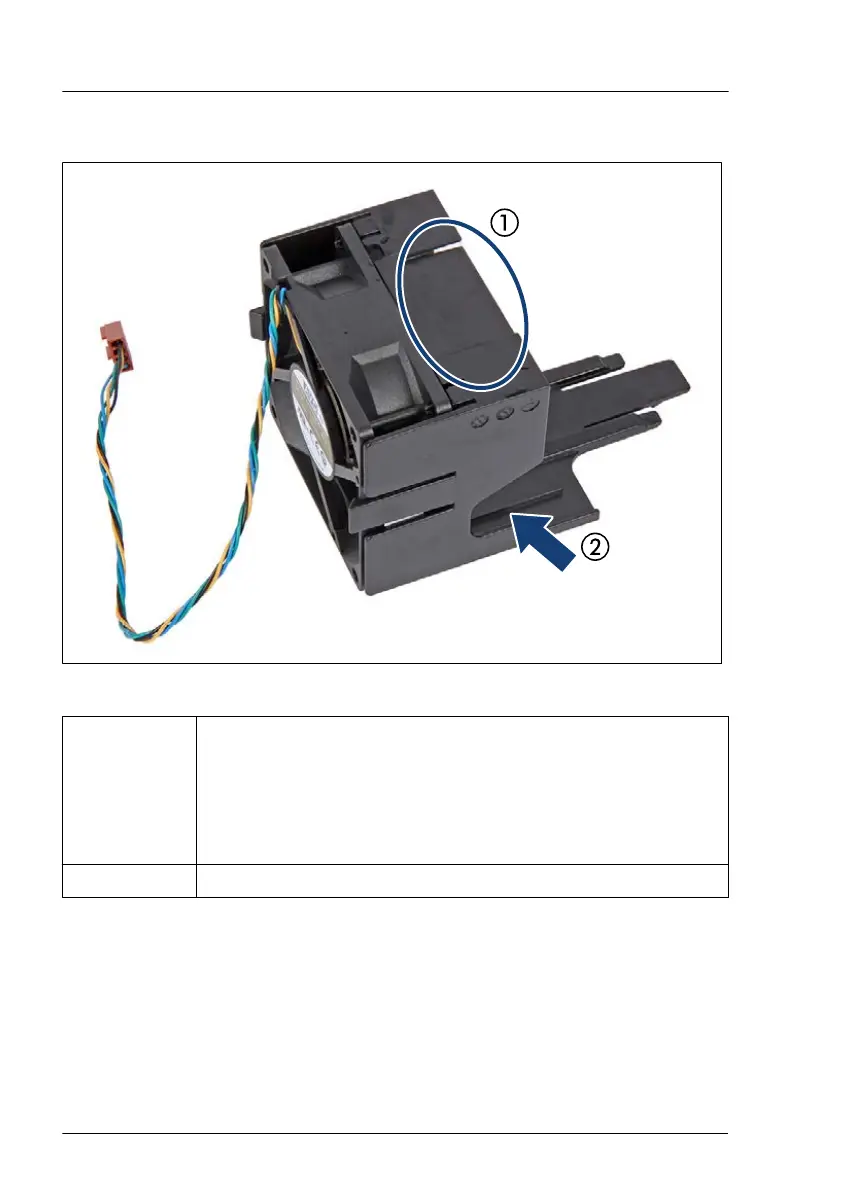

Figure 95: HDD fan module - breakout and recess
1 Breakout for the NVMe cables
If using a PCIe backplane:
▶
Break out the plastic flap of the HDD fan module by hand
(see oval) so that the NVMe cables can be run through the
breakout. This part can be disposed.
2 Recess for the power/OOB cable routing of SAS configuration
Concluding steps
▶
Install the HDD fan module, see "Installing the HDD fan module (2.5-inch
HDD variant)" on page 68.
▶
"Reassembling" on page
54.
▶
"Connecting the power cord (standard PSU, with cable tie)" on page 57.
Fans
178 Upgrade and Maintenance Manual TX1320 M5
