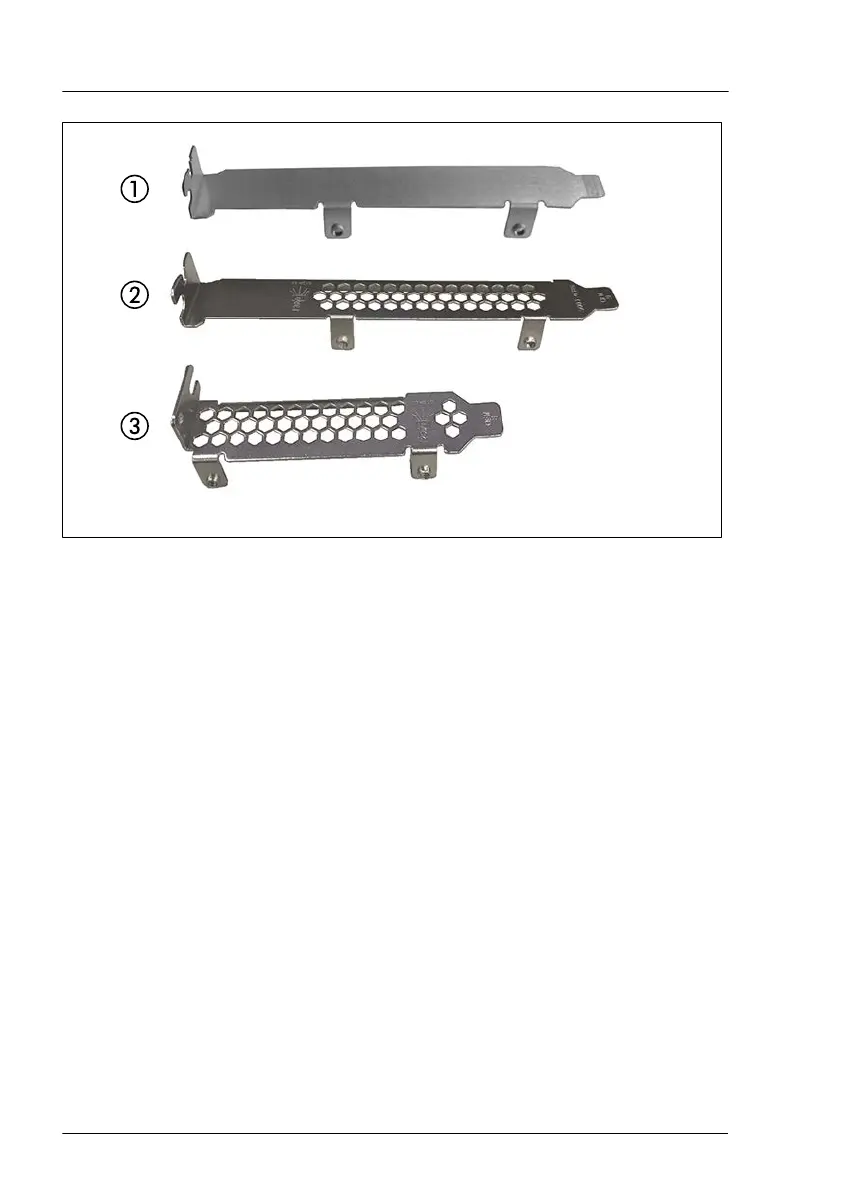

Figure 97: Perforated and non-perforated slot brackets
1 Full height bracket non-perforated
2
Full height bracket perforated
3
Low profile bracket perforated
Installing a slot bracket
â–¶
Place the controller on the mounting tabs on the slot bracket.
â–¶
Fasten the slot bracket to the controller with two screws.
Expansion cards and backup units
184 Upgrade and Maintenance Manual TX1320 M5
