Example: EP540i

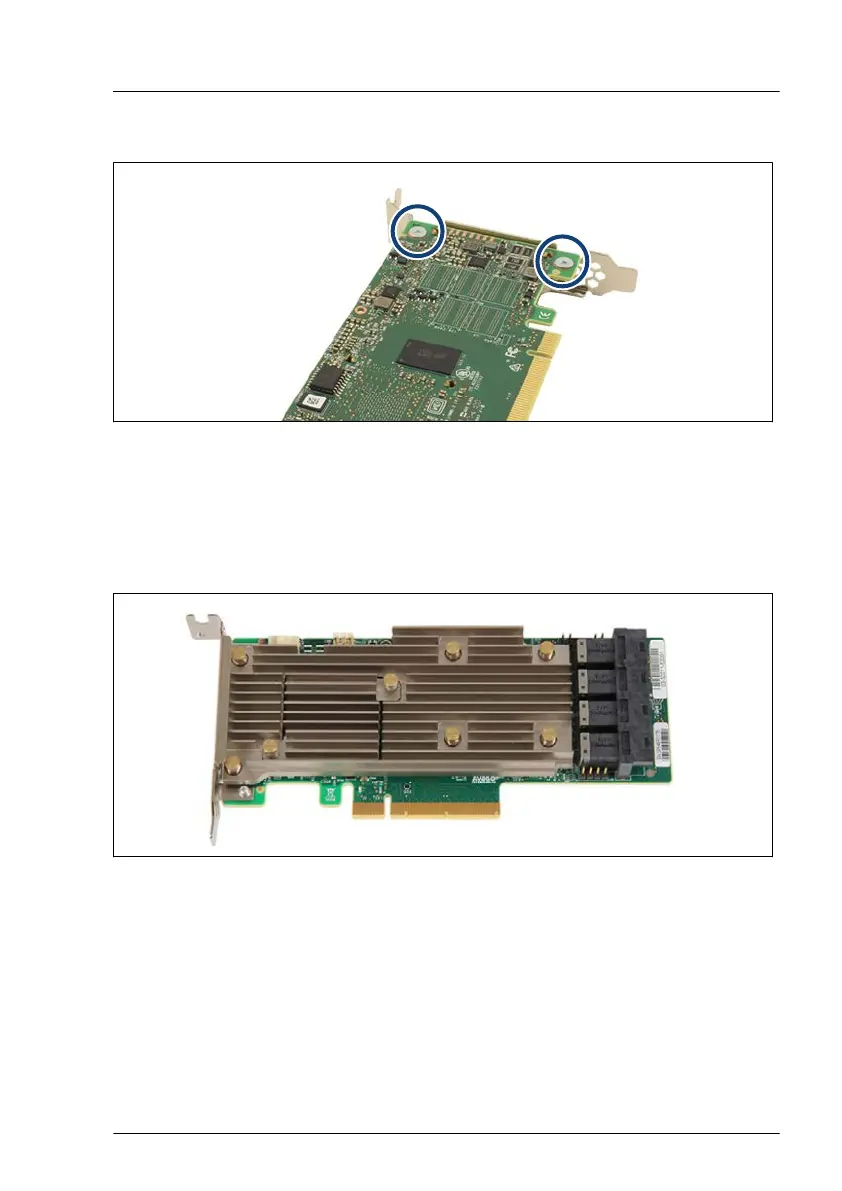

Figure 98: Placing the slot bracket
▶
Turn the controller to his bottom side.
▶
Place the controller on the slot bracket.
▶
Secure the slot bracket to the expansion card with two screws (see circles).
Figure 99: EP540i with installed slot bracket
▶
Turn the controller to his top side.
Expansion cards and backup units
TX1320 M5 Upgrade and Maintenance Manual 185
