If applicable, connect a FBU to the expansion card, see "Installing an FBU"
on page 208.
Example PRAID EP5xxi

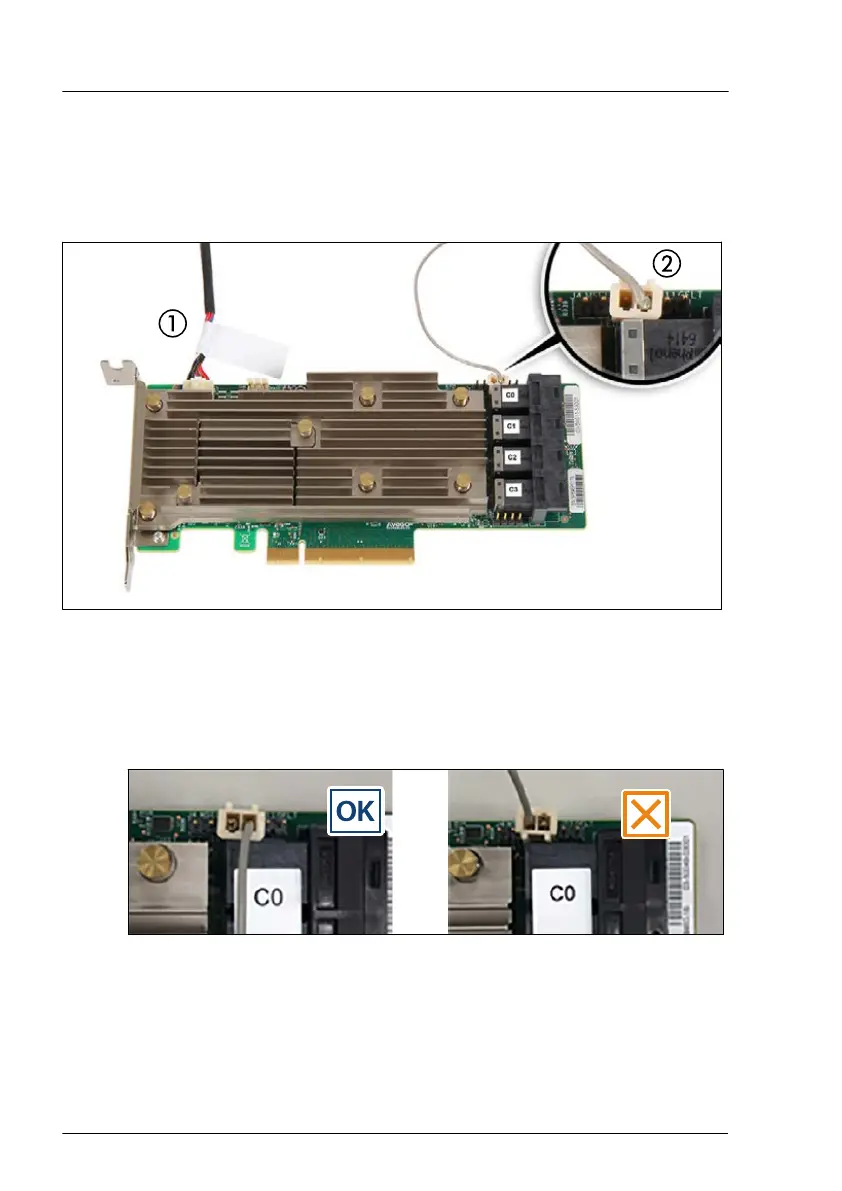

Figure 111: Connecting cables - PRAID EP5xxi
▶
Connect the cables:
1 If applicable, FBU cable
2 HDD LED cable
▶
Install the PRAID EP5x0i in slot 3, see "Installing expansion cards" on
page 195.
