Example PRAID EP6x0i

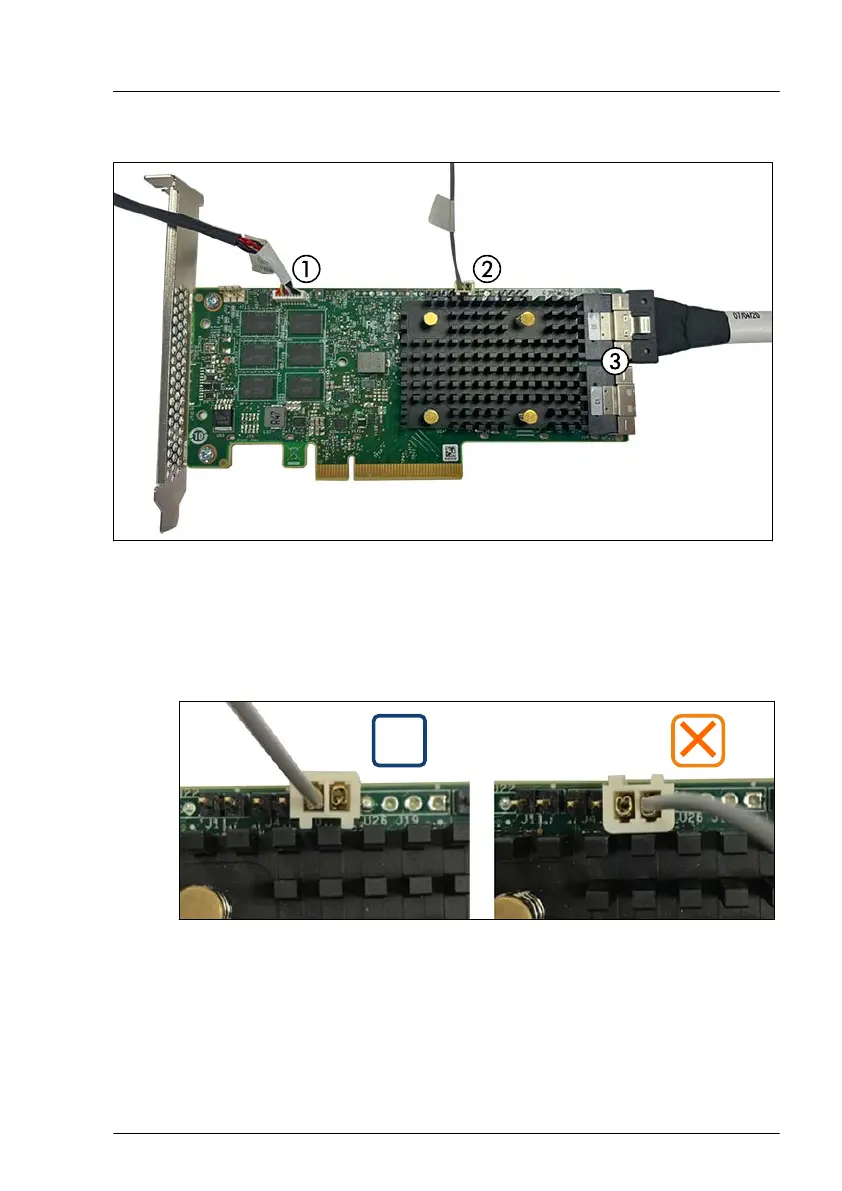

Figure 114: Connecting cables - PRAID EP6x0i
Connect the cables to the PRAID EP6x0i:
1 If applicable, FBU cable
2 HDD LED cable
OK
3 SAS cables
Expansion cards and backup units
TX1320 M5 Upgrade and Maintenance Manual 201
