Align the notch on the bottom of the module with the crossbar in the slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.

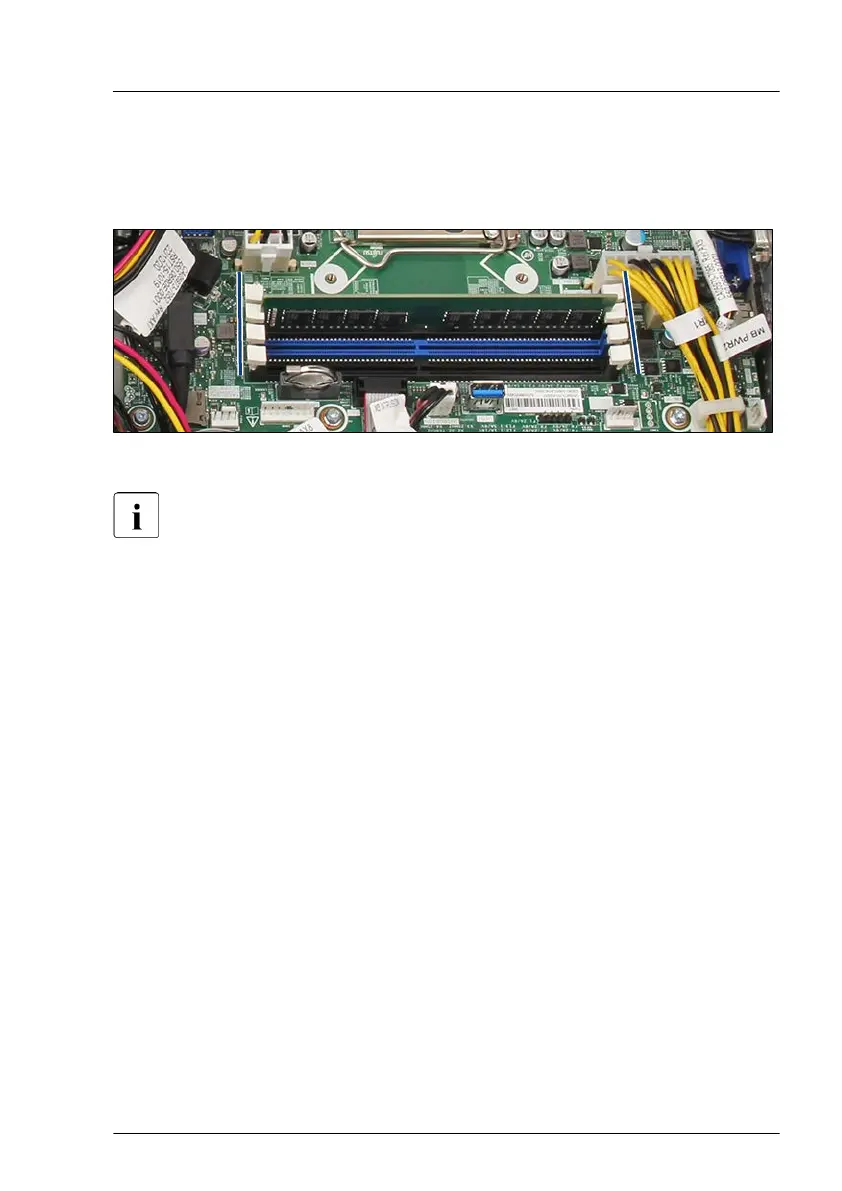

Figure 132: Correct position of securing clips
To improve the contact of the memory module perform the following
steps:
●
Eject the memory module again by pressing out the securing clips at
each end of the memory slot.
●
Press down on the memory module until the securing clips snap into
the cutouts at each end of the module.
●
Check if all securing clips are in the correct position, see "Correct
position of securing clips" on page
225.
Concluding steps
▶
"Reassembling" on page 54
.
▶
"Connecting the power cord" on page 57.
▶
"Switching on the server" on page 60.
▶
"Resuming BitLocker functionality" on page 91.
Main memory
TX1320 M5 Upgrade and Maintenance Manual 225
