CAUTION
▶
Be careful not to touch or bend the spring contacts on the CPU
socket.
Installing the CPU
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
If applicable, remove the protective cap from the bottom side of the CPU.

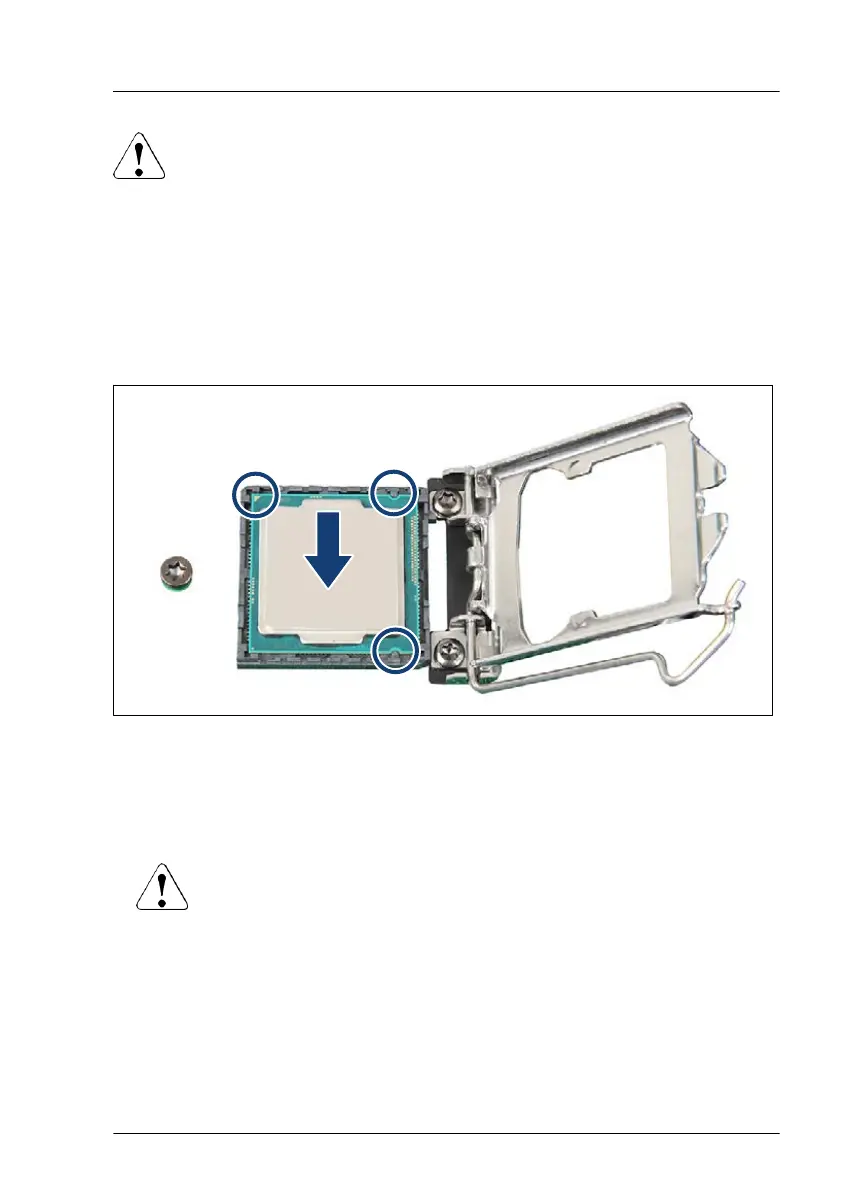

Figure 140: Installing the CPU
▶
Hold the CPU with your thumb and index finger. Make sure that the notches
on the CPU align with the posts on the socket (see circles).
▶
Lower the CPU straight down without tilting or sliding it in the socket.
CAUTION
▶
Ensure that the CPU is level in the socket.
▶
Be careful not to touch or bend the pins on the CPU socket.
▶
Never touch the underside of the CPU. Even minor soiling such
as grease from the skin can impair the CPU’s operation or
destroy the CPU.
▶
Ensure not to scrape or dent the CPU edges.
Processor (CPU)
TX1320 M5 Upgrade and Maintenance Manual 235
